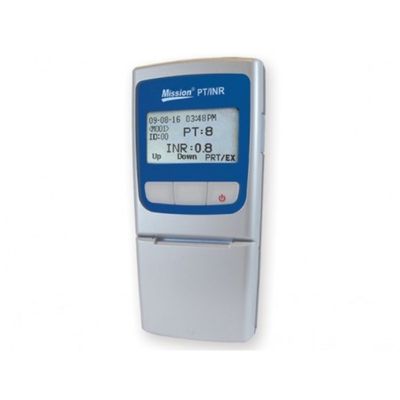

Mission -PT/INR Monitoring System
With the Mission® PT/INR monitoring system, healthcare professionals can be assured that they are getting the accuracy, reliability, and cost-efficiency they need. The Mission® PT/INR system is designed uniquely to meet the needs of healthcare professionals at the point of care.
- CE marked for professional and self-use
- Fast, reliable test results
- Compact, ergonomic design
- Enhanced memory, stores up to 200 results
Lancing Device & Lancets
- 6 adjustable depth settings for greater comfort
Safety Lancet I
- Needles automatically retract to ensure patient safety
- For single use only
- Encased sterile needles eliminate accidental injuries and contamination
Control Solution
- 2 control solutions available: Level 1, and Level 2
- Use control solution to confirm that the meter is working properly
Capillary Transfer Tubes
- 15 µL plastic capillary transfer tubes may be used as an option to direct sampling
Analyzer Type: Handheld Meter
Methodology: Optical Fluorescence
Type of Test: Coagulation Tests, HCT Range, INR Range
Time to Results: About 2 minutes
Memory: 200 Results with Date/Time
HCT: 25-60%
Specimen Volume: Hanging drop or 15 μL
Specimen Type: Fresh Capillary or Venous Whole Blood
INR: Measurement Range 0.7-7.0
PC Interface: Mini-USB
Operating Conditions: 15-35 °C (59-95 °F)
Storage Conditions: Meter: 0-50 °C (32-122 °F) Strip: 2-30 °C (36-86 °F)
Strip Shelf Life: 24 months
Power Source: 4 AAA Batteries or AC Adapter
Battery Life: >1,000 Tests
Meter Dimensions (L x W x H): 152 mm x 72 mm x 38 mm (6.0” x 2.8” x 1.5”)
Display Dimensions (L x W): 53 mm x 29 mm (2.1” x 1.1”)
Weight Excluding Batteries: 170 g (6.0 oz)
Support and Safety Functions: Patient ID, password protected results
Mission® PT/INR monitoring system is intended for self-diagnosis and professional use for monitoring oral, anticoagulant therapy using quantitative prothrombin (PT) tests. Mission® PT/INR strips work with capillary blood samples or non-anticoagulated samples of patients receiving coumarin, anticoagulant therapy (eg Warfarin).
Reliable
- Quick results for Prothrombin Time (PT) in seconds and International Normalized Ratio (INR)
- Large INR range of 0.7-7.0
- Individually packaged strips with to 2 years shelf life
- External optional printer available for quick printing of results
Simple operation
- Results in about 2 minutes
- Requires only a single drop of capillary blood or 15 µL of venous whole blood
- Insert strip, apply specimen and read results
User-friendly
- Handheld portable meter easy to use and ideal for physician offices and home testing
- Includes lockout functions and the capability to store patients ID’s
- Operates with battery or standard AC adaptor
Step 1
Insert strip
Step 2
Apply sample
Step 3
Read results
Efficient and Accurate
Small sample size: hanging drop of blood (15 μL).
Results in 2 minutes.
Clinically proven accuracy
Easy to Use
Direct Sampling (no capillary tube).
Ergonomic design.
3 easy steps: insert strip, apply sample & read results
Safe and Secure
Patient ID input.
Password protected results
