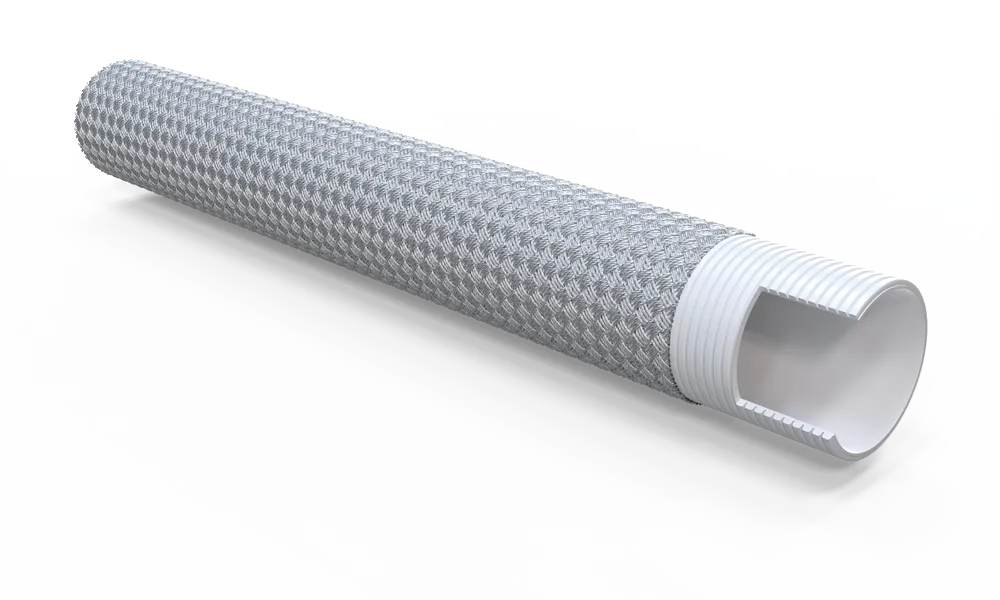

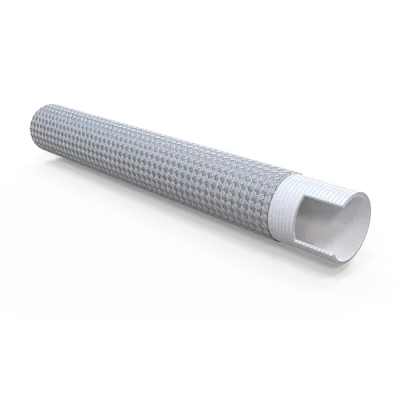

IZOFLEX -Model POLAR SBC -PTFE Hose with Stainless Steel Braiding for High-Pressure and Vacuum Applications
The POLAR SBC PTFE hose is engineered for high-performance applications, featuring a smoothbore inner structure that facilitates optimal fluid flow, combined with a corrugated PTFE exterior that ensures flexibility. Encased in a robust stainless steel braiding, this hose is designed to withstand both high-pressure and vacuum environments. It adheres to rigorous industry standards, making it suitable for ultra-hygienic and critical processes. Its versatility extends across numerous fields, including food, pharmaceutical, and chemical industries. The hose offers exceptional chemical and temperature resistance, augmented by its low friction coefficient and high bending stability. Customization is available for pre-assembly with specific fittings, ensuring it meets the exact requirements of its applications. The POLAR SBC PTFE hose's construction enables it to perform reliably under extreme conditions, providing a durable solution for transporting a wide range of fluids and gases.
This premium PTFE hose is designed with a smoothbore interior and a corrugated PTFE outer structure, encased in durable stainless steel braiding. Combining the flexibility of a corrugated exterior with the optimized flow of a smooth inner bore, this hose meets the strictest standards across a variety of industries. Its robust construction makes it suitable for both high-pressure and full-vacuum applications, with certifications to ensure compatibility with ultra-hygienic and critical processes.
- Smooth Bore / Corrugated Exterior: Smooth inner bore optimizes flow, while the corrugated outer layer provides flexibility.
- Stainless Steel Braiding: Reinforced with AISI 304 stainless steel braiding for enhanced pressure rating, durability, and safety.
- Vacuum and Pressure Ready: Capable of withstanding full vacuum and high-pressure conditions, ensuring reliable performance across applications.
- Wide Temperature Range: Operates from -54°C to +260°C, maintaining flexibility and resilience in extreme temperatures.
- Compliance: Certified to USP Class VI and FDA standards, suitable for food, pharmaceutical, and high-purity applications.
- Cover ; AISI 304
- Tube ; PTFE
- Colour tube ; White
- Max. temperature ; +260 °C
- Min. temperature ; -54 °C
- Norm ; FDA 21 CFR 177.1550, EU 10/2011, USP CLASS VI
