A-D-Engineering -Model UA-420 -Pulse Oximeter

• Trusted LifeSource brand
• Easy to use
• Reliable, accurate results

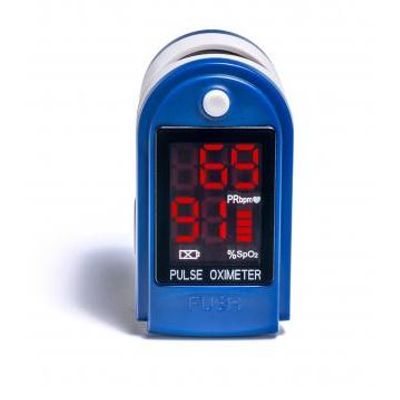

The A&D Medical Pulse Oximeter is easy to use with a one button operation. Place the Pulse Oximeter on your finger, press the button, and the results are clearly shown in any direction on the LCD. The device is portable making it easy to take measurements on the go and has power saving features to prolong battery life.

The Pulse Oximeter is a non-invasive device intended for checking oxygen saturation of arterial hemoglobin (SpO2) and the pulse rate of adults at home.

Key Features:

• Small size and lightweight
• Auto Rotate
• SImple Operation
• Pulse rate value display
• Low power consumption
• Low battery indicator
• Auto off to conserve battery life
• 2 Year Warranty

• Pulse Oximeter
• Instruction Manual
• Lanyard
• Carrying Case
• Batteries (2 x AAA)

• Storage Environment     Temperature: -40°C - +60°C
• Relative humidity: <=95%
• Atmospheric pressure: 500hPa -1060hPa
•  Operating Environment     Temperature: 10°C - 40°C
• Relative humidity: <=75%
• Atmospheric pressure: 700hPa -1060hPa
•  Measurement of SpO2Measurement Range: 0-100%
• Accuracy: 70-100%, ±2%; Below 70% unspecified
• Measurement of Pulse RateMeasurement Range: 30 bpm -250 bpm
• Accuracy: ±2 bpm
• Power Requirements     2 x 1.5V AAA alkaline battery (2.6-3.6V)
• Power Consumption     Smaller than 25 mA
• Resolution     SpO2: 1%, Pulse rate: 1 bpm
• Optical Sensor     Red light (wavelength is 660nm, 6.65mW)
• Infrared (wavelength is 905nm, 6.75mW)
• Dimensions     2.3 x 1.2 x 1.3" / 59 x 31 x 32 mm
• Weight     1.8oz / 52g (with the batteries)
