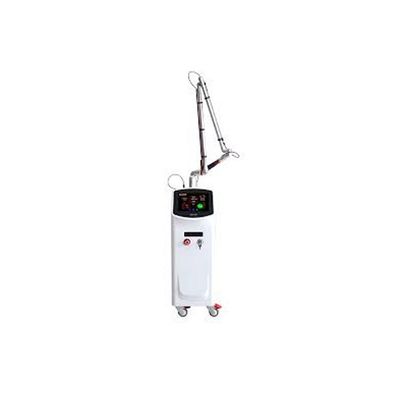

Daeju -Model ACTIVO -Q-Switched Nd-YAG for Skin Dyschromia
The Q-Switched Nd: YAG Laser method with short pulse width and low energy used for removal of pigment demonstrated better treatment effects than other conventional treatment methods. This treatment method is a new concept that can be described as selective photo rejuvenation with minimal thermal damage and inflammation reaction to affected tissues by pigmentation.
Most popular related searches
- Laser Category : Q-Switched Nd: YAG
- Laser Source : Nd: YAG
- Wavelength : 1,064 [nm] / 532 [nm]
- Indications : Laser toning(1,064nm), Laser peel(1,064nm), Epidermal Lesion(532nm)
- Advantages :
- High Peak Power
- Less side effect
- Less Pain
- Types of Three Pulses
- Wavelength : 1,064 [nm] / 532 [nm]
- Operation Mode : Q-switched & Spectra Mode (Quasi-long Pulse)
- Beam Profile : Top Hat Mode
- Pulse Energy 1064 mode
- (Q-switched mode) : Max. 2,700 [mJ]
- Pulse Energy 532 mode
- (Q-switched mode) : Max. 900 [mJ]
- Type of Pulse : Single Pulses : One whole pulse
- Double Pulses : Photoacoustic twin pulse
- Triple Pulses : Photoacoustic triple pulses
- Pulse Width : 5 ~ 10 [ns] (Q-switched Mode) / 500 [?] (FR mode)
- Spot Size 1,064nm
- (Q-switched mode) : 2 ~ 10 [?]
- Spot Size 532nm
- (Q-switched mode) : 2 ~ 10 [?]
- Pulse Rate : 1,064, 532, FR mode : Max. 10 [Hz]
- Memory : 5 User Programmable Memory
- Optical Delivery : Articulated Arm
- Aiming Beam : Diode 650 [nm] (Adjustable Brightness)
- Display : 10.4"
- Cooling : Closed Circuit Water to Air
- Input Power : 220-230 [VAC], 50/60 [Hz], Power consumption: 3 [kVA]
- Dimension : 315 x 825 x 1,022 [mm] (W x D x H)
- Weight : 90 [kg]
- This treatment method should be regarded as minimized selective photo rejuvenation that will provide a new effective treatment for melasma.
- Our Q-switched Nd: YAG, ACTIVO is a revolution in tattoo & pigmented lesion treatment. This remarkable new configuration optimizes the delivery of constant laser energy to the target chromosphere while minimizing side effect of the skin.
