Quad-Row Connectors

FromMolex
SHARE

World’s smallest board-to-board connector ideally suited for space-constrained smartphones, smartwatches, wearables, AR/VR devices and more!

Most popular related searches
medical device
medical consumable device
wearable device
medical consumable

Height: 0.60mm
Width: 2.00mm
Length: 3.10mm (total pitch+)

Staggered-Circuit Layout Offers 30% Space Savings

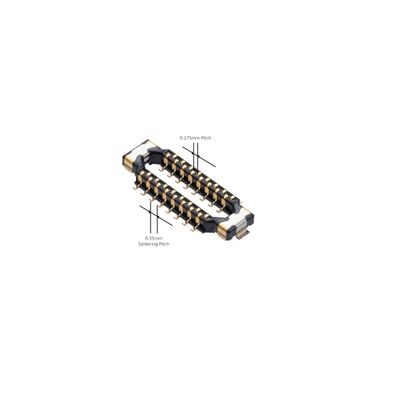

Quad-Row Board-to-Board Connectors feature the first-ever staggered circuit layout, which positions pins across four rows at a signal contact pitch of 0.175mm. The result delivers unprecedented space savings while enabling high-density circuit connectivity.

Robust Features Deliver Increased Strength for More Reliable Performance
Interior armor and insert-molded power nail safeguard pins from damage during volume manufacturing and assembly. These capabilities, along with a wide alignment, facilitate easy, secure mating and lower fallout rates.

High-Volume Production, Diverse Mix of Applications
More than 50 million Quad-Row Connectors have been shipped since 2020 to support the highest-selling smartwatch worldwide. Ideally suited for a variety of applications requiring increasingly smaller PCBs and flex assemblies, Quad-Row Board-to-Board Connectors meet product miniaturization demands, creating nearly limitless opportunities across a wide array of industries.



Customers want to fulfill the market demand for product miniaturization without compromising on performance parameters. Quad-Row board-to-Board Connectors deliver up to 3.0A power in a fine-pitch low-profile design.

Customers want to avoid the risk of connector damage during the mating process. Quad-Row Board-to-Board Connectors support standard SMT processes and feature an armored and overmolded nail with interior cover, providing robustness and preventing damage to connectors.

Consumer and medical device customers want to adopt lean production methods to improve productivity. Bigger reel size facilitates increased production with the same resources.
