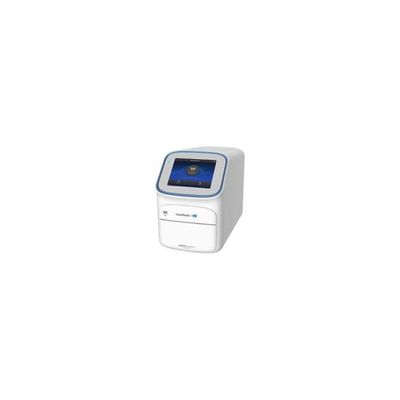

QuantStudio - Model 5 Dx - Real-Time PCR System
Effortless, reliable, IVD qPCR system to meet your unique needs. For over 10 years, Thermo Fisher Scientific has developed high-performance, superior, real-time PCR (qPCR) instruments for clinical laboratories all over the world. We have also been committed to developing systems that meet the specific needs of clinical, diagnostic, and assay developers, with the increased security and compliance of an IVD device.
Product Details
The Applied Biosystems QuantStudio 5 Dx Real-Time PCR System is designed to simplify workflows and minimize training needs to help customers get to their clinical answers quickly and to fit seamlessly into established workflows. This compact, flexible system provides confidence in performance and supports both development* and IVD needs.
The QuantStudio 5 Dx system is an instrument with premium performance at an affordable price that provides:
- Results you can trust—detect differences in target quantity as small as 1.5-fold in singleplex reactions and obtain 10 logarithmic units of linear dynamic range
- Simple, powerful software—allows users to set up a run, lay out assays, control the instrument, and conduct plate analysis within a single, easy-to-use software interface
- Proven performance—over 10 years of clinical real-time PCR instrument manufacturing
- Designed with the clinic in mind—interactive diagnostic instrument with short run times, minimal maintenance, and use of existing plastic consumables
- Enhanced security—auditing and e-signature functionalities that enable you to comply with regulations
- Peace of mind—IVD test menu allows only authorized IVD tests to be run through IVD mode, helping to reduce the risk of unauthorized use and accidental or intentional misuse
- Flexibility you need—diagnose or develop, the choice is yours with software options that guide you through every step of test development* and in vitro diagnostic (IVD) modes
- Maximize benchtop space—compact instrument
- Superior support—support available globally by highly skilled, customer-focused staff
- QuantStudio performance—reliability, sensitivity, and accuracy you expect coupled with an intuitive and simple-to-use interface that allows users of any experience level to operate the system with ease
Specification
- Sample capacity (wells): 96
- Reaction volume: 96-well 0.2 mL block: 10-100 μL
- Excitation source: Bright white LED
- Filter or color combinations: 6 decoupled filters, CMOS camera
- Excitation/detection range: 450-680 nm/500-730 nm
- Multiplexing: 5-plex + 1 passive reference, 6-plex with no passive reference
- Maximum block ramp rate: 6.5°C/sec
- Average sample ramp rate: 3.66°C/sec
- Temperature uniformity: 0.4°C
- Temperature range: 4-99.9°C
- Heating and cooling method: Peltier
- Independent temperature zones: 6 VeriFlex zones (5°C zone to zone)
- Chemistries: Fast and standard
- Run time: <30 min
- Compatible dyes: FAM, SYBR Green, VIC, ABY, NED, TAMRA, JUN, ROX, Mustang Purple, Cy5
- Security, auditing, and e-signature (SAE) features: The audit function is always enabled in IVD-mode and on the desktop software when in Development mode*. In Development mode, audit mode can be set to Optional or Required depending on traceability needs.
- Automation compatible: No
- Footprint (H x W x D): 40 x 27 x 50 cm
- Weight: 27 kg
Features
- Maintenance and calibration reports: Records are updated automatically with maintenance and calibration events and can be printed on demand, documenting that the system has been maintained and calibrated to vendor specifications.
- Reagent tracking: Stores and archives information about reagents used with each test, including lot number and expiration date, with each run. Archived files can be retrieved when required to track samples that were tested with a given set of reagents.
- Sample tracking: Enables laboratories to more easily track samples associated with a particular plate, set of reagents, run date and time, and data files.
- E-signature history: Security, auditing, and e-signature software records test events, actions taken, dates, user names, user roles, and activity performed, for documentation and archiving purposes.
- Experimental results: Report output records details for documentation, archiving, and review-at-a-glance needs, including experiment name, barcode, file name, time stamps (creation, run start, run finish, duration, and modifications), instrument name, serial number, experiment type, results summary, plate layout image, standard curves, results table, and QC summary
