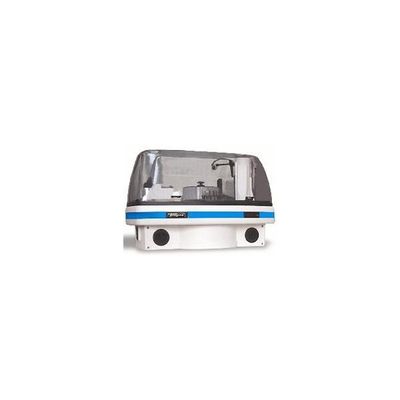

UDI -Model UDILIPSE -Random Access And Stat Automated Clinical Chemistry Analyzer

• Easy to follow with user guidance on screen.
• Monitoring of reaction curve for patient samples.
• Monitoring of reagent volume by computer.
• Data transfer to host computer.
• Test with one ,two or three reagents.
• Test via standard or via factor.
• Extensive quality control.
• Graphical display of QC results.
• Patient entry during operation.
• Programmable automatic wash between samples and test runs.
• Comprehensive error code handling.

• Positive Bar Coding system.
• Trolley Carbine.
• Reagent Cooling station (Compartment).

Technical Features

• Assay Types: End Point, Kinetic, Differential, Bichromatic and Immunoturbidimetric. Up to 200 different tests, all user programmable.
• Test Entry Modes: selective - profiles - batch - STAT
• Samples Loading : 4 separate sectors with 8 positions each for continuous loading of samples.
• Primary Tubes: diameter: from 8 up to 16 mm ,height: from 40 up to 100 mm .
• On Line Reagents: up to 24 positions
• On Line Standards & Controls: up to 12 positions
• STAT Samples Processing: allowed at any time
• Throughout : 130 test / hour WITHOUT ISE
• Working Temperature: 37°C
• Minimum Reaction Volume: 200 ml

Optic System

• Photometer: direct photometry, double beams, multi - wavelength optic
• Wave Length: 8 narrow band interferential filters
• Light Source: halogen lamp 6V / 10W
• Optical Path: 6 mm.
• Linear Range: 0.0005 ¸ 2.500 Abs
• Resolution: 0.0005 Abs

Sampling Arm

• Single mechanical unit with: - capacitive liquid level sensing
• Reagent pre-warming at 37°C
• Automatic probe washing

Diluter

• Dilutions are made without using traditional syringes with the following specifications:
• Sample volume: 2.0 ml ¸ 50 ml (1 ml incr.)
• Reagent volume: 25 ml ¸ 400 ml (1 ml incr.)

Reaction Plate

• Circular having 6 disposable sectors with 20 reaction curettes each

Computer & Software

• Computer Type: IBM compatible
• Memory: 64 MB
• HD: 20 GB
• Monitor: color SVGA 15" low radiation
• Report Printer: 80 columns impact graphic
• Interface: bi-directional RS 232C
• Software: multitasking WINDOWS 98

Installation requirements

• Power Supply: 90 ¸ 230Vac -47 / 63 Hz - 300W
• Dimensions : Depth: 570 mm,Length: 750 mm , Height: 525 mm
• Weight : 43 kg
• Ambient Temperature: 18 ¸ 30°C
• Relative Humidity:20 ¸ 85%
