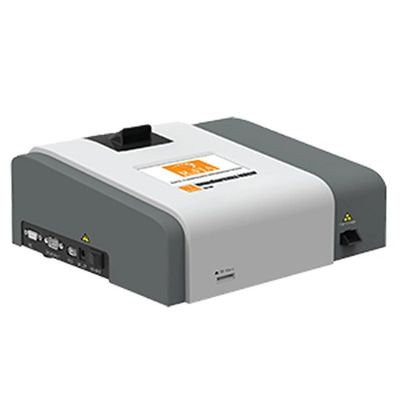

CTK RaFIA -Model FIA-100 -Rapid Fluorescence Immunoassay System

This analyzer uses an LED as the excitation light source. The emitted light from the fluorescence dye is collected and converted into an electrical signal. The signal is closely related to the amount of fluorescence dye molecules presented on the spot under examination.
After a buffer-mixed sample is applied to the test device, the test device is inserted into the analyzer and the concentration of the analyte is calculated by a pre-programmed calibration process. The RaFIA Immunofluorescence Analyzer can only accept test devices that are designed especially for this equipment.

This instrument provides reliable and quantitative results for a variety of analytes in human blood and urine within 20 minutes.

This instrument is for in vitro diagnostic use only. Any use or interpretation of preliminary test results must also rely on other clinical findings and the professional judgment of health care providers. Alternative test method(s) should be considered to confirm the test results obtained by this device.

ACCURACY:

• Less than 3% intra-run CV
• Eliminates subjective interpretation by operator
• Results comparable to lab-based CLIA analyzer

EASE-OF-USE:

• System uses an SD card to ensure the proper test is being run
• Able to run whole blood, serum, plasma and urine specimens
• Touch screen interface for easy operation
• Lightweight (2.9 kg) and portable

DATA MANAGEMENT:

• Results presented on screen or via the built-in printer
• Storage capacity of 10,000 test results

SPECIFICATIONS

• Human Machine Interface: 4.3-inch LCD touch screen
• Dimensions: 280(L)×256(W)×102(H)mm
• Weight: 2.9 kg
• Power Adapter: 100-240 VAC, 50-60Hz
• Data output: On screen/Printer

OPERATION ENVIRONMENT

• Temperature: 10~30?
• Humidity: ≤70%
• Atmosphere pressure: 85.0~106.0 Kpa
• Operation Altitude: <2000m
• Location: Dry, clean, flat, horizontal surface, away from direct sunlight, mechanical vibration, and strong electromagnetic interference.

STORAGE ENVIRONMENTAL

• Temperature: 0~50?
• Humidity: ≤93%
• Storage Elevation: 0~2000m

OPTICAL DESCRIPTION

• Excitation Light Source: LED 365nm
• Detector: Silicon photodiode
