ESEQuant -Model TS2 -Rapid Molecular Platforms
Discover our two molecular platforms suitable for point-of-need testing. The LabDisk Player platform offers a complete sample-to-result workflow in a microfluidic cartridge. The ESEQuant TS2 isothermal amplification reader enables PCR-grade results in less than 30 minutes.
LabDisk Player and isothermal reader ESEQuant TS2 for fast result generation
Sample-to-answer solution in one microfluidic cartridge
The LabDisk technology opens new possibilities for researchers and developers of molecular point-of-care and point-of need solutions. Complex sample preparation and nucleic acid amplification tasks can be done in one closed microfluidic cartridge. Your lab personnel does not require extensive and costly trainings in order to perfom molecular testing and obtain results in less than one hour. This platform is your ideal solution for airports, small hospitals, sewage plants and many more decentralized settings.
- Set your measurement parameter (e.g. temperature profile, wavelength or interrupt workflow)
- Select and assign algorithms for your individual measurement channels
- Create one result by easily combining data from individual channels
- Generate reports
- Quickly apply different algorithm settings to a batch of raw data
- Define algorithm settings on solid statistical base
- Visualize your growth curves with many filter, sorting and color options
- Export your analysis to Microsoft Excel spreadsheet or print the results

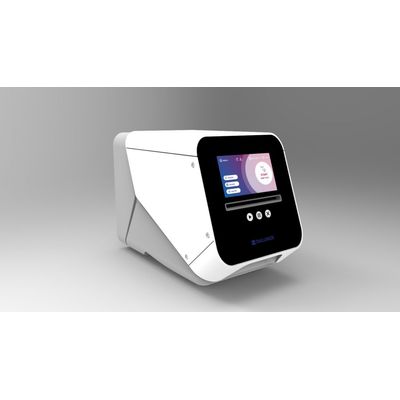

The ESEQuant TS2 is an easy-to-use fluorescence measurement system for isothermal nucleic acid amplification and fluorescence analysis in other applications. The instrument is extremely sensitive, robust and ideal for small labs or even off-site testing. Utilizing a fluorescence detector based on modern microsystems technology and state-of-the-art light-emitting diode (LED) and filter technology, the sensitivity of the tube scanner is comparable to top-of-the range commercial spectrophotometers.
- Small instrument for standalone use
- Customizable system with short time to market
- Developed for regulated markets (IVD/FDA ready)
- Highly-reliable measurements with optical self-check
- Multiple connectivity options
- Online growth curve view
- 3-click run start
- Multi-language support
- Bar code sample and test entry
- Supports the regulation requirements of Clinical
Laboratory Improvement Amendments (CLIA)
Housing
- Approx. weight 4 kg (8.8 lb)
- Small footprint of 23 x 20 x 14 cm (9.1 x 7.9 x 5.5 in)
Optics
- Up to 6 discrete wavelength combinations detected per tube, covering 3 orders of magnitude signal intensity
- Covers the spectrum between 365 and 720 nm
- Internal self-check using fluorescence reference material
- Broad sensitivity range
Temperature unit
- Incubation of 12 standard PCR tubes
- Peltier-based heating/cooling system capable of attaining 15–95°C (59–203°F)
- Redundant sensors for surveillance functionality
Electronics
- Interactive 17.8 cm (7 in) touchscreen
- Internal 1D/2D-bar code reader
- Ethernet and 4 USB A/B ports
- Mains operation
Interfaces
- Interactive 17.8 cm (7 in) touchscreen
- Internal 1D/2D-bar code reader
- Ethernet and 4 USB A/B ports
- Mains operation
Miscellaneous
- Multiple assay evaluation settings and data processing software
- Documentation for submission into regulated markets available
