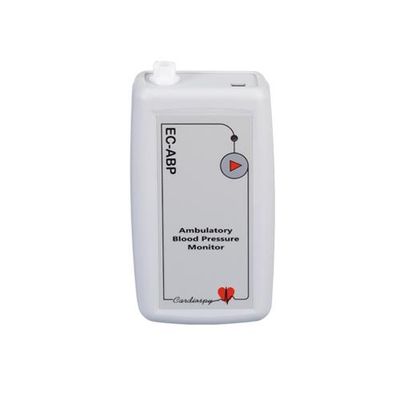

Labtech - Model EC-ABP - Recorder for Holter Systems

Additional ABP Recorder for an earlier purchased Holter ECG or ABP System. The diagnostic device operates with rechargeable or alkaline batteries, being suitable for 50-hour BP monitoring with up to 300 BP readings, using oscillometric technology.

The Recorder set consists of: 1 pc EC-ABP Recorder + analysis SW + accessories*.

*The manufacturer reserves the right to change the list of accessories at any time.

• Parameters: EC-ABP
• BP measurement method: Oscillometric with step deflation, Disatolic values correspond to Phase 5 Korotkoff Sounds
• BP measurement range: 20 – 280 mmHg (max inflation 300 mmHg)
• Pressure Transducer Accuracy:    ± 3 mmHg
• Pulse Rate Range: 30 – 240 BPM (Beats Per Minute)
• Pulse Rate Accuracy: ± 2% or ±3 BPM, whichever is greater
• Calibration: The device should be verified on a yearly interval
• Safety Systems: Max. inflation pressure is limited to 300 mmHg;
• Auto safety release valve for power failure.
• Maximum cuff inflation time is limited to 75 seconds.
• Duration of blood pressure reading is limited to 130 seconds.
• Data Connector:  Mini USB B type connector
• Min. Power supply: 2 x 1.2 V AA rechargeable batteries of minimum
• 2500 mAh capacity or 2 x 1.5V AA high quality
• alkaline batteries
• Size: Approx. 125 x 70 x 33 mm
• Weight: Approx. 250g (incl. Batteries)
• Screen: No screen
• Clinical Accuracy: Meets accuracy requirements of ANSI/AAMI
• SP10:2002(R)2008, EN1060-4:2004 and ISO
• 81060-2:2009.
• Patient button: Yes
• Storage Card: built-in 2GB (uSD), more than 4000 measurement
• Interval settings: In intervals of 10 to 240 minutes (adjustable every minute)
• Recording Period (hours): 8-336 hours with battery replacement (~ 48 hours recording with a set (2) of batteries)
