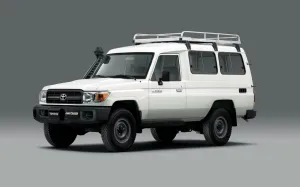

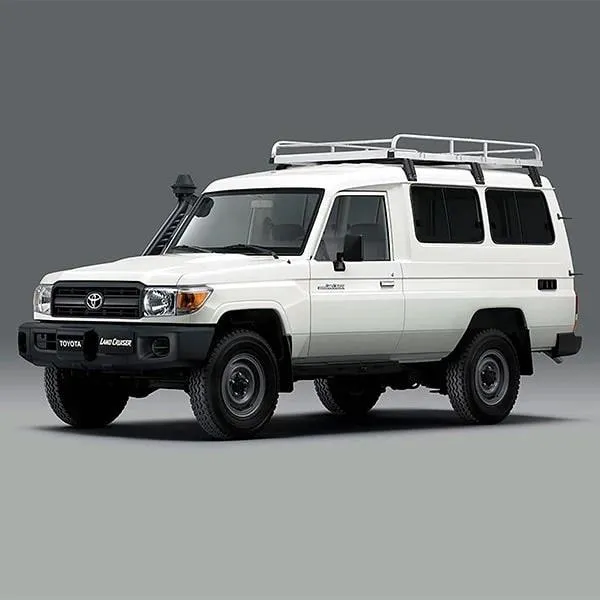

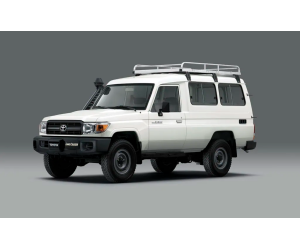

B-Medical Systems -Refrigerated Vaccine Transport Vehicle

Vaccine Cold Chain: Set Temperature: +5°C. Vaccine storage capacity: 13.98 cu ft | 396 l. Certifications: WHO PQS E002/001 I EU MDD Class I. Climate class (ambient temperature range): 0°C to +50°C.

Most popular related searches

vaccine transport

vaccine refrigeration

Simple structure of the vehicle ensures extra protection for the vaccines through its robustness
Designed to operate in a wide range of environmental conditions (0°C to 50°C)
Rotomoulded refrigerator body construction: rust free and extremely robust
Certified ECE R80 74/408/EWG (crash test)
Ability to travel through hostile and narrow road networks

Able to maintain the cold chain until the last mile of the national cold chain
2 integrated rechargeable batteries (offering 16 hours of autonomy)
Digital temperature control for accurate temperature setting and monitoring
Polypropylene foam insulation guarantees the highest possible hold over time
Integrated Remote Temperature Monitoring Device (RTMD) with free communication

Roof rack enables loading of non-vaccine items and dry supplies
230V AC & 12V DC connection – providing flexible power supply alternatives for operations

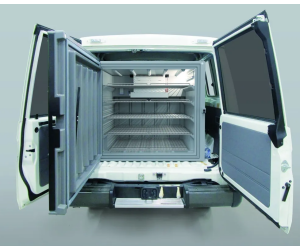

Designed with shelves to provide safe storage for the vaccines
Integrated heating functions for operations during winter conditions and cold countries

Vaccine storage capacity: 13.98 cu ft | 396 l
Set Temperature: +5°C
Climate class (ambient temperature range): 0°C to +50°C
External dimensions (HxWxD): 1000 x 1100 x 1400 mm | 39.97 x 43.31 x 55.12 in
Internal dimensions (HxWxD): 32.68 x 34.96 x 48.35 in | 830 x 888 x 1228 mm
Refrigerant Type: R134a
Supply voltage: DC I 12V ; AC I 220-240 V – 50/60 Hz
Energy consumption: 6.5 kWh/24h
Materials: Polypropylene (Refrigerator)
WHO PQS Code: E002/001
Certifications: WHO PQS E002/001 I EU MDD Class I
Defrosting technique: Automatic
