Zinc-Air - Regenerative Fuel Cell System
Lowest cost of storage in the market for long-duration applications. Resolves intermittent and unpredictale nature of renewable energy sources while completely decoupling the linkage between power and energy.
Most popular related searches
20,000
Operating life hours
8 + Hours
Of energy storage
$45 / kWh
Energy capacity costs
Durable
Zero capacity fade over extensive lifetime.
Robust
Full discharge cycles. Same performance.
Safe
Non-flammable and non-toxic.
Low Cost
Longer duration requirements, lower cost per kWh.
Scalable

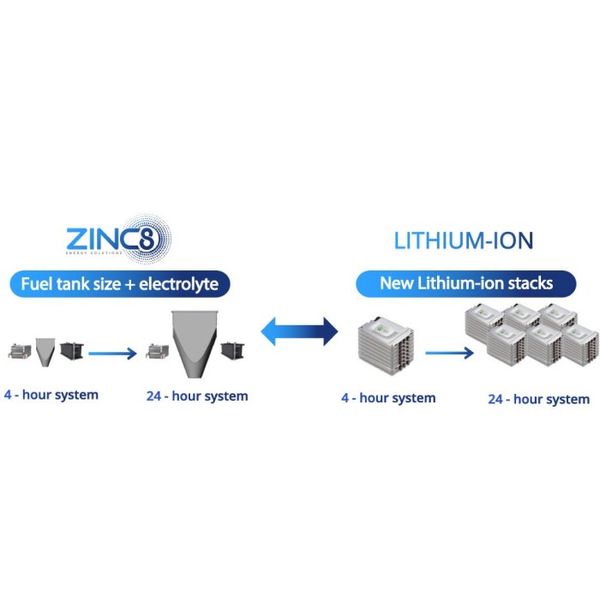

Energy capacity easily extended by adding larger fuel tank.
Sustainable
Stable supply chains for mass manufacturing.

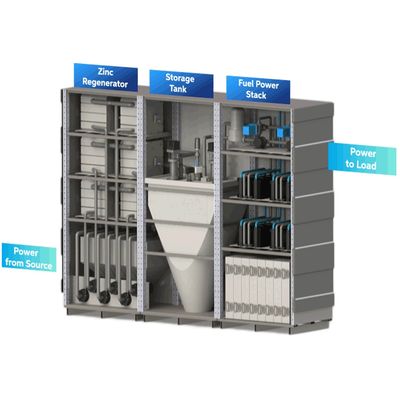

- Power from the grid or renewable source is used to generate zinc particles in the Zinc Regenerator. Oxygen is released to the atmosphere as a by-product.
- The zinc particles are flowed to the Storage Tank and maintained in potassium hydroxide (KOH) electrolyte until required.
- Whenever power is needed, the zinc particles are delivered to the Power Stack, recombining them with oxygen to generate electricity. The zinc oxide (ZnO) by-product is returned to the storage tank for later regeneration.
