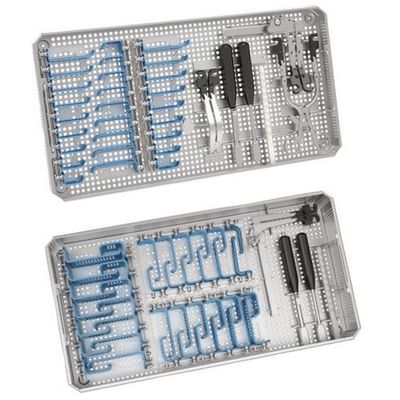

CEATEC -Model CCR and CLR -Retractor System
The CCR and CLR retractors are ensuring stable access to the surgical site, providing good visibility and allowing the surgeon the freedom to perform the operation without hand retraction. The CCR retractor system is used for soft tissue retraction at cervical spine. The CLR retractor system can be applied at lumbar spine for medial and paraspinal approaches to perform discectomies, pedicle screw fixation and many other procedures.
High Radio-Translucency
- Titanium fenestrated blades provide a good view of spinal instrumentation during radiographic imaging
Non-slip fenestrated Titanium Blades
- Gentle and safe grip with precise fit
- better view and little weight
- semi-radiolucent
- tissue protection due to less retraction forces
- color coded according to blade width (for CCR)
Tissue Protective Teeth
- Firm yet gentle grip
- Effective retraction of tissue
Lightweight
- easy to handle intraoperatively
Rapid “Ball-Snap” Attachement
- Easy and fast handling
- Secure connection
Anti-Rotation Handles
- Retractors can be fixed to skin
Side Load Mechanism
- easy and fast intra-operative handling
- modular handles to be used as hand-held retractors
Complete range of Blades are made of titanium.
Multiple sizes allow the surgeon to optimize the surgical area to minimize the surgical site.
For CCR:
- 19 mm system for microsurgical techniques (green color coded)
- 24 mm system for standard techniques (blue color coded)
- blade lengths from 25 mm up to 75 mm in different tooth designs
For CLR:
- 20 mm for monosegmental access
- 40 mm for bisegmental access
- 60 mm for multisegmental access
- blade lengths from 35 mm up to 85 mm
- Hooks for Hemi Laminectomy
Double Hinge Retractors
- exceptional intra-operative adaption
- basic retractor with tiltable butterfly screw
