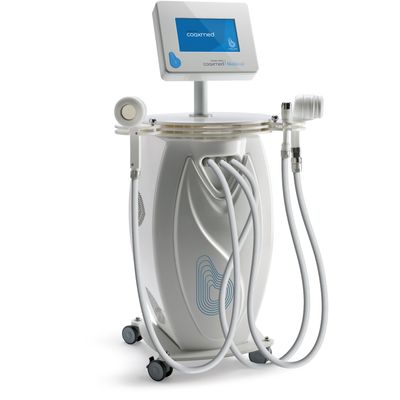

Biotec CoaxMed -Â Revolutionary Device
CoaxMed is a revolutionary device because it combines the action of five different technologies in a single platform, to obtain a powerful synergy able to drastically improve the majority of skin imperfections. The doctor is now able to use a single device to reshape the body and eliminate the signs of aging: the most versatile and effective device available on the market. CoaxMed presents the revolutionary combination of monopolar, bipolar and fractional radio frequency (RF), low-frequency ultrasound, vacuum massage and cryoliposculpt.
- Proven clinical efficacy
- Versatile and cutting-edge platform
- Ongoing technological update program
- Modular design with multiple application solutions
- A single compact and reliable device
- Extremely efficient management of the system
- Low maintenance costs and remote serviceability
- Minimal consumption of consumables
From the proven experience of Biotec Italia, a unique, original and complete concept
Optimal results thanks to the combination of different procedures, capable of treating subjects with different clinical cases.
Aesthetic treatment indications
Non-invasive facelift treatment
Treatment of acne and acne scars
Treatment for skin laxity reduction
Remodelling treatment
SkinTite®
Fractional monopolar RF. Rythmic suction to firm up sagging skin Single-use, sterilized electrode which acts at variable depths from 0.25mm to 2.5 mm.
Ablaze®: The cryo-radiofrequency that safely reshapes the skin.
Cooltec® cools down the head of the handpiece and protects the skin’s surface.
3Density® modulates the field frequency thus assuring a three-dimensional and even penetration of the radio frequency.
Propatch: made of disposable saline gel, it guarantees sterility and uniformity in radio frequency emission, eliminating the risks of burns.
EndoShape®: Traction and tissue biostimulation.
Synergistic action of rhythmic suction and radiofrequency; increases blood flow and lymphatic drainage, rejuvenating tissues and acting on cellulite and skin laxity.
General technical specifications
- ELECTRICAL POWER REQUIREMENTS: 240 Vac 50/60 Hz
- MAX POWER WATTAGE: 450 VA
- FUSES: 2 x F4A 250 V
- MAXIMUM SUCTION: 66.6 kPa
- MINIMUM CRYO TEMPERATURE: -10°
- SAFETY CLASS AND TYPE OF SECTION APPLIED: I BF
- RISK CLASSIFICATION AS PER 93/42/EEC: Class IIb
- DIMENSIONS (W x D x H): 680 x 470 x 1400 mm
- MAXIMUM WEIGHT WITH HANDPIECES: 63 kg
Facial Radio Frequency
- FUNCTION: Bipolar/Monopolar
- FREQUENCY: 300 kHz to 1000 kHz
- WAVE SHAPE: Amplitude modulated signal
- MAXIMUM POWER: 100 W
- OPERATING MODES: Continuous and Pulsed
- ACTIVATION: Pedal
EndoShape
- In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
- he ergonomics, ease of handling and light weight of the handpiece make the treatment quick and easy, facilitating the fluidity of movements.
- 3Density mode that automatically modulates the frequency of radio frequency flow for three-dimensional and uniform penetration of thermal energy.
SkinTite
- In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
- Lightweight, so as to facilitate the specialist’s movements.
- The ergonomics of the handpiece makes it easy to handle, comfortable to use.
- Emission of the monopolar radio frequency over the entire length of the electrode.
- Rhythmic suction that favours subcutaneous drainage.
- Mesoroll, sterile and single-use electrode in AISI 316 LVM medical-grade stainless steel material, measuring from 0.25mm to 2.5mm depending on the area to be treated.
Ablaze
- In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
- The ergonomics, ease of handling and light weight of the handpiece make the treatment quick and easy, ensuring the fluidity of movements.
- Cooltec ® Mode, which cools down the head of the handpiece and protects the surface of the skin./div>
- High quality materials to handle high power (up to 100W) and high frequencies (up to 1000KHz).
- Propatch: disposable saline gel patch that guarantees sterility and uniformity in the emission of monopolar radio frequency, eliminating the risks of burns caused by the concentration of current in a single point.
- 3Density Mode that automatically modulates the frequency of the field for a three-dimensional and uniform penetration of the radiofrequency.
