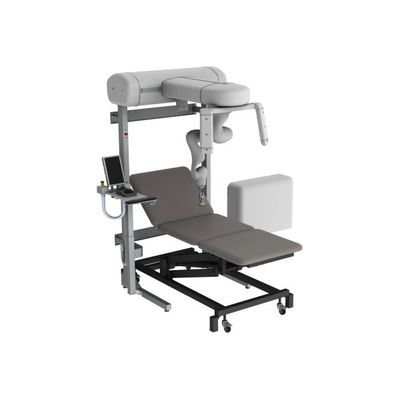

HERA -Robot Assisted Ultrasound Scanning System
HERA is a robotic solution aimed at offering an efficient robot assisted ultrasound for scanning of pregnant women compatible with most ultrasound devices on the market. This is accomplished by integrating cutting-edge technology, including advanced sensors and remote controllers with precise haptic feedback.
Most popular related searches
Reduces sick leave for staff
Removes the cause of developing Work-Related Musculoskeletal Disorders (WRMSD)
Workforce Relief Solution
Helps clinics provide relief to their workforce
Increases efficiency
Sonographers can carry out more scanning hours per day
New paradigm in scanning
Opens up new new opportunities for working with AI and intelligent scanning
- Name : HERA
- Catalogue number : 25-800-000 (100) / 25-800-001 (130)
- Basic UDI : 574400408259000006M
- Warranty : Minimum 2 years and/or 10,000 hours
- Rated input : 100 V - 240 V AC
- Frequency : 50Hz - 60 Hz ± 1 Hz
- Rated power input : 1 kVA
- Operating temperature : 5°C – 35°C
- Storage temperature : 0°C – 45°C
- Atmospheric pressure : 700 - 1060 hPa
- Humidity : 20% - 80% RH
- Environment : Indoor usage
- Ingress : IP21
- Maximum area of reach : 500 x 500 x 400 mm
- Sound level : 67 DBA
- Dimensions : 25-800-000: 1543mm x 1513mm x 2363mm 25-800-001: 1843mm x 1513mm x 2363mm
- Weight : 330 kg
