SAXON - Model B 99 G - Roller Brake Tester With Large Display

Scope of delivery:

• Split bed roller set with motors underneath the rollers
• Hot galvanized chassis and covers
• Preparation for weight system
• Test width: 800 x 2800 mm variable
• Max. Test load (50%): 13 t
• Max. Axle load for drive over: 15 t
• Roller diameter: 234 mm

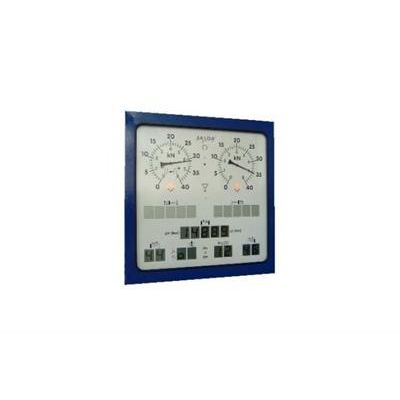

• Large display with range 0...8 kN, 0...40 kN (opt. 0…800, 0…4000 kgf)
• Cupboard for electric and electronic
• Soft start – Automatic – Motors 2x 11 kW
• Test speed 2,5 km/h (optional 5,0 km/h)
• Automatic drive out assistant
• Remote control set
