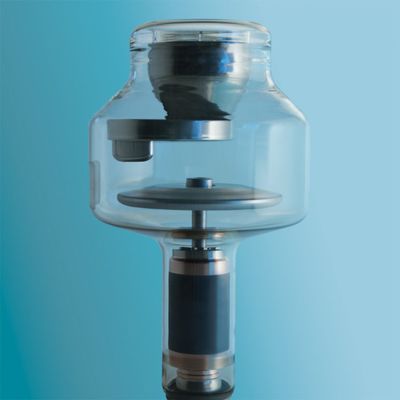

Model RTM101 - Rotating Anode X-Ray Tube
FromIAE S.p.A.
Rotating anode X-ray tube for heavy duty X-ray systems and remote controlled tables.
Most popular related searches
• TZM target with large thermal capacity
• Bearing assembly and bearing lubricant system are designed for long life under hardest x-ray operating conditions
• Focal track in tungsten-rhenium alloy to prevent cracking
• Reduced thermal stress on the bearings improves tube life duration
• Severe tests during conditioning assure best performances
• Available also special versions for:
– reloading in GE-CGR and SIEMENS housings
(supplied with anode end adaptation piece)

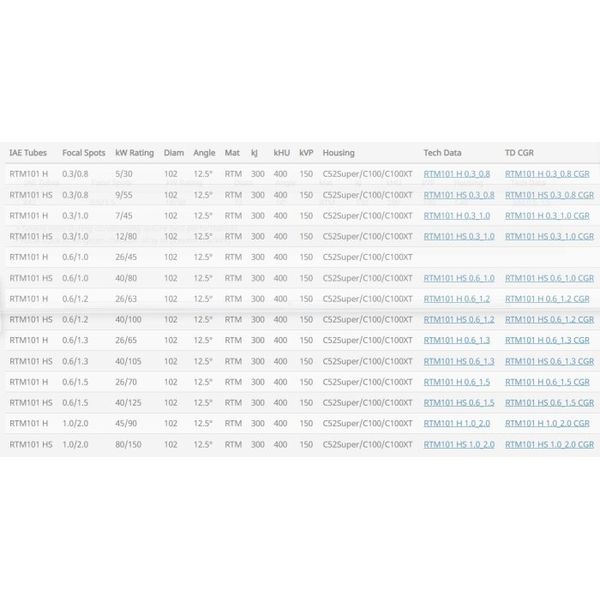

| Maximum peak voltage | 150 kV | |
| Anode angle and diameter | 12.5°- 102 mm | |
| Maximum anode dissipation | 1000 W (80000 HU/min) | |
| Anode heat storage capacity | 300 kJ (400 kHU) | |
| Rotating anode speed | 3000 – 10000 rpm |
