Adamant Valves -Model Sanitary Fittings -Sanitary Clamps for Pipeline Systems

SHARE
Sanitary fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders. Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.
Most popular related searches
cosmetic pharmaceutical
pharmaceutical chemical
pharmaceutical beverage
cosmetic chemical
pharmaceutical industry

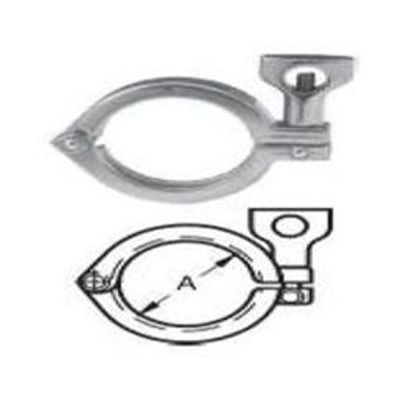

SS13MHM--Heavy Duty Single Pin Clamp



Tube OD
(Size)

A

SPR @
70° F *

Part Number
304



1/2"-- 3/4"

1.062

1500

SS13MHM-05-075-304



1"-- 1.5"

2.122

500

SS13MHM-1-1.5-304



2"

2.654

450

SS13MHM-2-304



2.5"

3.185

400

SS13MHM-2.5-304



3"

3.717

350

SS13MHM-3-304



4"

4.820

300

SS13MHM-4-304



5"

5.820

225

SS13MHM-5-304



6"

6.695

150

SS13MHM-6-304



8"

8.695

100

SS13MHM-8-304



*Tighten wing nut to 25in. lb. of torque



SS13MHM-DP-- Heavy Duty Double Pin Clamp



Tube OD
(Size)

A

SPR @
70° F *

Part Number
304



1"-- 1.5"

2.122

500

SS13MHMDP-1-1.5-304



2"

2.654

450

SS13MHMDP-2-304



2.5"

3.185

400

SS13MHMDP-2.5-304



3"

3.717

350

SS13MHMDP-3-304



4"

4.820

300

SS13MHMDP-4-304



* Tighten wing nut to 25in. lb. of torque






SS13MHM-3P-- Heavy Duty Three Segment Clamp



Tube OD
(Size)

A

SPR @
70° F *

Part Number
304



1"-- 1.5"

2.122

500

SS13MHM3P-1-1.5-304



2"

2.654

450

SS13MHM3P-2-304



2.5"

3.185

400

SS13MHM3P-2.5-304



3"

3.717

350

SS13MHM3P-3-304



4"

4.820

300

SS13MHM3P-4-304



*Tighten wing nut to 25in. lb. of torque



SS13MHP-- Heavy Duty Bolted Clamps



Tube OD
(Size)

A

SPR @
70° F *

Part Number
304



1/2"-- 3/4"

1.062

1500

SS13MHP-05-075-304



1"-- 1.5"

2.046

1500

SS13MHP-1-1.5-304



2"

2.578

1000

SS13MHP-2-304



2.5"

3.110

1000

SS13MHP-2.5-304



3"

3.460

1000

SS13MHP-3-304



4"

4.744

800

SS13MHP-4-304



6"

6.632

300

SS13MHP-6-304



* Tighten bronze nut to 20ft. lb. of torque






Adamant Valves offers a full line of 304 and 316L stainless steel sanitary fittings and valves used in the food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries. Butt-weld, tri-clamp and I-line connection ends are interchangeable.
