Adamant Valves - Model Sanitary Fittings - Sanitary Tees with I-Line Ends
FromAdamant Valves
Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.Most popular related searches
cosmetic pharmaceutical
pharmaceutical chemical
pharmaceutical beverage
cosmetic chemical
pharmaceutical industry
Adamant Valves offers a full line of 304 and 316L stainless steel sanitary fittings and valves used in the food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries. Butt-weld, tri-clamp and I-line connection ends are interchangeable.
|

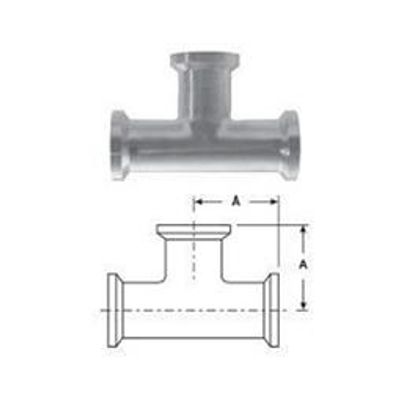

SS7I--- TEE--- 15WI (All ENDS) , Polish ID/OD |
||||||
| Tube OD (Size) |
A | Part Number 304 |
Part Number 316L |
|||
| 1" | 1.875 | SS7I-1-304 | SS7I-1-316 | |||
| 1.5" | 2.594 | SS7I-1.5-304 | SS7I-1.5-316 | |||
| 2" | 3.062 | SS7I-2-304 | SS7I-2-316 | |||
| 2.5" | 3.468 | SS7I-2.5-304 | SS7I-2.5-316 | |||
| 3" | 3.812 | SS7I-3-304 | SS7I-3-316 | |||
| 4" | 4.750 | SS7I-4-304 | SS7I-4-316 | |||
| 6" | 6.750 | SS7I-6-304 | SS7I-6-316 | |||
| 8" | 8.125 | SS7I-8-304 | SS7I-8-316 | |||
|
SS7AI--- TEE--- 15WI on each Run x 14WI on the Branch, Polish ID/OD |
||||||
| Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
| 1" | 1.875 | 1.688 | SS7AI-1-304 | SS7AI-1-316 | ||
| 1.5" | 2.594 | 2.406 | SS7AI-1.5-304 | SS7AI-1.5-316 | ||
| 2" | 3.062 | 2.812 | SS7AI-2-304 | SS7AI-2-316 | ||
| 2.5" | 3.468 | 3.156 | SS7AI-2.5-304 | SS7AI-2.5-316 | ||
| 3" | 3.812 | 3.5 | SS7AI-3-304 | SS7AI-3-316 | ||
| 4" | 4.750 | 4.468 | SS7AI-4-304 | SS7AI-4-316 | ||
| 6" | 6.750 | 6.565 | SS7AI-6-304 | SS7AI-6-316 | ||
| 8" | 8.125 | 7.940 | SS7AI-8-304 | SS7AI-8-316 | ||
|
SS7BI--- TEE--- 15WI on 1 Run x 14WI on 1 Run x 15WI on Branch, Polish ID/OD |
||||||
| Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
| 1" | 1.875 | 1.688 | SS7BI-1-304 | SS7BI-1-316 | ||
| 1.5" | 2.594 | 2.406 | SS7BI-1.5-304 | SS7BI-1.5-316 | ||
| 2" | 3.062 | 2.812 | SS7BI-2-304 | SS7BI-2-316 | ||
| 2.5" | 3.468 | 3.156 | SS7BI-2.5-304 | SS7BI-2.5-316 | ||
| 3" | 3.812 | 3.500 | SS7BI-3-304 | SS7BI-3-316 | ||
| 4" | 4.750 | 4.468 | SS7BI-4-304 | SS7BI-4-316 | ||
| 6" | 6.750 | 6.565 | SS7BI-6-304 | SS7BI-6-316 | ||
| 8" | 8.125 | 7.940 | SS7BI-8-304 | SS7BI-8-316 | ||
|
SS7EI--- TEE--- 14WI on each Run x 15WI on Branch, Polish ID/OD |
||||||
| Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
| 1" | 1.688 | 1.875 | SS7EI-1-304 | SS7EI-1-316 | ||
| 1.5" | 2.406 | 2.594 | SS7EI-1.5-304 | SS7EI-1.5-316 | ||
| 2" | 2.812 | 3.062 | SS7EI-2-304 | SS7EI-2-316 | ||
| 2.5" | 3.156 | 3.468 | SS7EI-2.5-304 | SS7EI-2.5-316 | ||
| 3" | 3.500 | 3.812 | SS7EI-3-304 | SS7EI-3-316 | ||
| 4" | 4.468 | 4.750 | SS7EI-4-304 | SS7EI-4-316 | ||
| 6" | 6.750 | 6.565 | SS7EI-6-304 | SS7EI-6-316 | ||
| 8" | 8.125 | 7.940 | SS7EI-8-304 | SS7EI-8-316 | ||
|
SS7HI--- TEE--- 14WI on All Ends, Polish ID/OD |
||||||
| Tube OD (Size) |
A | Part Number 304 |
Part Number 316L |
|||
| 1" | 1.688 | SS7HI-1-304 | SS7HI-1-316 | |||
| 1.5" | 2.406 | SS7HI-1.5-304 | SS7HI-1.5-316 | |||
| 2" | 2.812 | SS7HI-2-304 | SS7HI-2-316 | |||
| 2.5" | 3.156 | SS7HI-2.5-304 | SS7HI-2.5-316 | |||
| 3" | 3.500 | SS7HI-3-304 | SS7HI-3-316 | |||
| 4" | 4.468 | SS7HI-4-304 | SS7HI-4-316 | |||
| 6" | 6.565 | SS7HI-6-304 | SS7HI-6-316 | |||
| 8" | 7.940 | SS7HI-8-304 | SS7HI-8-316 | |||
|
SS28YI-15I- Female I-Line True "Y" |
||||||
| Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L | ||
| 1" | 2.785 | 3.223 | SS28YI-15I-1-304 | SS28YI-15I-1-316 | ||
| 1.5" | 2.950 | 3.388 | SS28YI-15I-1.5-304 | SS28YI-15I-1.5-316 | ||
| 2" | 3.665 | 4.290 | SS28YI-15I-2-304 | SS28YI-15I-2-316 | ||
| 2.5" | 4.530 | 5.285 | SS28YI-15I-2.5-304 | SS28YI-15I-2.5-316 | ||
| 3" | 5.220 | 6.095 | SS28YI-15I-3-304 | SS28YI-15I-3-316 | ||
| 4" | 6.725 | 6.725 | SS28YI-15I-4-304 | SS28YI-15I-4-316 | ||
| Note: Female I-Line Lateral Available( 1"-- 4" ) | ||||||
|
SS9I--- CROSS--- 15WI ( All ENDS) , Polish ID/OD |
||||||
| Tube OD (Size) |
A | Part Number 304 |
Part Number 316L |
|||
| 1" | 2.660 | SS9I-1-304 | SS9I-1-316 | |||
| 1.5" | 3.200 | SS9I-1.5-304 | SS9I-1.5-316 | |||
| 2" | 4.040 | SS9I-2-304 | SS9I-2-316 | |||
| 2.5" | 4.160 | SS9I-2.5-304 | SS9I-2.5-316 | |||
| 3" | 4.470 | SS9I-3-304 | SS9I-3-316 | |||
| 4" | 5.225 | SS9I-4-304 | SS9I-4-316 | |||
