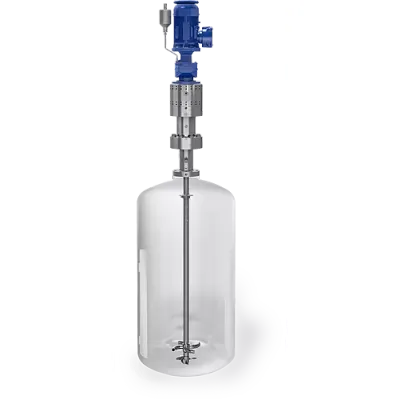

PRG -Self-Priming ATEX High-Pressure Magnetic Agitator for Chemical and Pharmaceutical Processes
The self-priming ATEX high-pressure magnetic agitator by PRG is engineered to meet the stringent requirements of sensitive stirring processes in the chemical and pharmaceutical sectors. This agitator is essential for operations involving highly reactive gases entering pressure vessels, where safety is paramount. It features a hermetically sealed system that effectively prevents gas leakage. Furthermore, the agitator uses a proprietary dry-running hybrid bearing system to enhance stability, reducing frictional heat through high-quality ceramic components with ATEX certification. This versatile agitator supports processes like gassing, dispersing, and suspending within a viscosity range from 1 to 150 mPas and capacity of 5 to 1,000 liters. It operates efficiently across temperatures from -35 to 180°C and is tailored to process-specific parameters, achieving compliance with key standards like FDA, EG 1935, and GMP.Most popular related searches
pharmaceutical industry
hybridization system
pharmaceutical process
pharmaceutical processes
pharmaceutical processing
pharmaceutical chemical
- PROCESSES : Gassing, dispersing, suspending, high pressure processes
- VISCOSITY-RANGE : 1 mPas to 150 mPas
- CAPACITY RANGE : 5 up to 1.000 l
- INDUSTRIES : Pharma industry und Chemicals
- CERTIFICATES/CONFORMITIES : FDA, EG 1935, 3.1, GMP compliant, EHEDG compliant, ATEX
- SEALING SYSTEM: Hermetically closed
Self-priming ATEX high-pressure magnetic agitators: Absolute safety for sensitive stirring processes
Sensitive processes, such as the entry of highly reactive gases into pressure vessels, require the highest safety demands on agitator systems. Requirements that our self-priming high-pressure magnetic agitator for top installation fulfills in several ways: Thanks to the hermetically sealed system, gas leakage is practically impossible.
At the same time, the dry-running hybrid bearing system developed by us guarantees maximum stability in the stirring process, while the generation of frictional heat can be minimized by using high-quality ceramic components with ATEX certification.
- Hermetically closed system
- CIP and SIP cleaning
- Dry-running hybrid bearing
