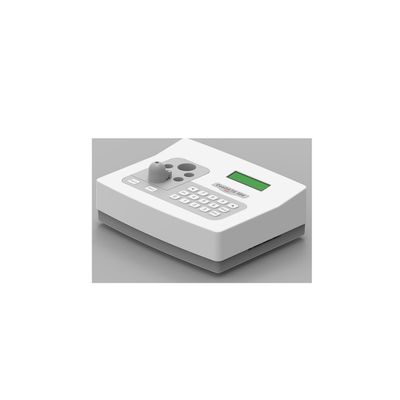

Model CoaData 504 - Semi-Automated 1-Channel Coagulation Analyzer
FromLabitec GmbH
Semi-automated 1-channel coagulation analyzer for fast and accurate determination of coagulation assays. Compact in size, easy to operate, this analyzer is the ideal partner for the small laboratory, medical practices and intensive care. The CoaDATA 504 uses the turbodensitometric measuring principle and combines the advantages of mechanical and optical detection methods. This standardized measurement method ensures reliable measurements even when using turbid samples and reagents.
Most popular related searches
coagulation analyzer
medical practice
intensive care
patient identification
intensive care use
medical laboratory
medical care
DETECTION PRINCIPLE
- Turbodensitometric (opto-mechanic)
- Magnetic stir bar for homogenizing the test approach and increase of sensitivity
- Large measuring range with higher accuracy and precision compared to only optical detecting principles
- Ambient light compensation
- Plasma Samples
- Micro volume: 150µl test volume
MEASURING UNIT (37,4°C CONTROLLED)
- 1 Measuring channel
- 1 Reagent position
- 4 Cuvette incubation positions
FEATURES
- Open System, free editable reagent parameter
- 15 programmable test positions
- Automated calculation of seconds, INR, %, g/l, mg/dl, Ratio
- Editable calibration-/reference curve (9 points)
- Patient-ID, numeric (manually) and alphanumeric (Barcode)
- Uni-directional HOST communication
- Multi-language user interface (DE, EN, ES, FR, PT, RU)
COAGULATION REAGENTS
- PT (Seconds, %, INR)
- aPTT (Seconds, RATIO)
- Fibrinogen according to Clauss (mg/dl, g/l)
- Thrombin Time (Seconds)
- Batroxobin Time (Seconds)
FACTOR DEFICIENT REAGENTS
- Extrinsic Factors II, V, VII und X (PT based)
- Intrinsic Factors VIII, IX, XI und XII (aPTT based)
THROMBOSIS RISK REAGENTS
- Protein C (Clotting Test)
- Protein S (Clotting Test)
