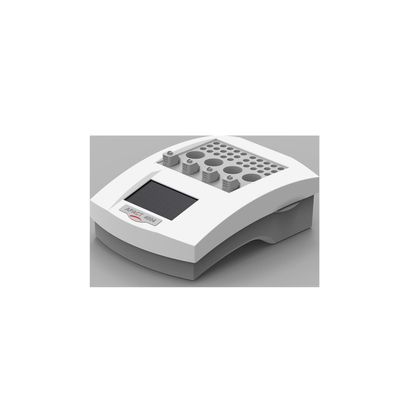

APACT -Model 4004 -Semi-Automated 4-Channel Coagulation Analyzer
FromLabitec GmbH
Semi-automated 4-channel platelet aggregometer (LTA) according to Born method. Available as a compact stand-alone version or combined with the APACT LPC-Software this analyzer suits into all routine- and research laboratories. The APACT 4004 is the ideal partner when monitoring of thrombocyte-induced haemostasis disorders (e.g. ADP accumulation defect, Bernard-Soulier Syndrome, von Willebrand-Jürgens Syndrome, Thrombasthenia) and the assessment of the risk of thromboembolism (determination of spontaneous aggregation) become important. Thrombocyte aggregation is an economical alternative to other thrombocyte function analyses, especially in large scale serial investigations.
Most popular related searches
coagulation analyzer
heparin induced
platelet aggregation
platelet function
platelet
Heparin
hemostasis
collagen
ROUTINE REAGENTS
- ADP (Adenosin-Diphosphate)
- Collagen
- Arachidonic Acid
- Epinephrine
- Ristocetin
SPECIAL TESTING
- HIT (Heparin Induced Thrombocytopenia)
- v.Willebrand Ristocetin Co-Factor (Option)
DETECTION PRINCIPLE
- LED Photometer (photo-mechanic)
- Magnetic stir bar for homogenizing the test approach and increase of sensitivity
- Measuring principle and assay procedure according to Born
- Micro volume: 200µl PRP + 20µl Inductor
MEASURING UNIT (37,4°C CONTROLLED)
- 4 Measuring channel (740nm)
- 4 Reagent positions (1x stirred)
- 2 x 15 Incubation positions
FEATURES
- Intuitive graphic user interface on touch display
- 15 individually editable test positions
- Cost effective single-use cuvettes
- Automated calculation of max./ min. Aggregation, Shape Change, Lag-Phase, Des-Aggregation, area and more
- Max. measuring time up to 3.600 sec.
- Real time reaction curve recording
- PPP and PRP values automatically storable
- Measuring range: 30.000 – 600.000 Thrombocytes / µl
