CurioLab

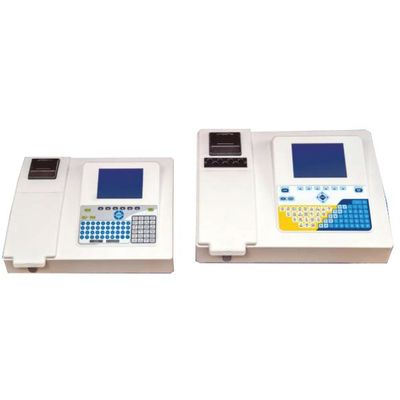

CurioLab - Semi Automated Clinical Chemistry Analyser
FromCurioLab
CurioLab is a curious fusion of reliability and performance. Its versatility improves productivity of modern labs through its robust design, intuitive software and hassle free operation
Most popular related searches
automatic clinical chemistry analyzer
automatic clinical chemistry
clinical chemistry analyzer
chemistry analyzer
clinical chemistry
clinical analyzer
CurioLab is a curious fusion of reliability and performance. Its versatility improves productivity of modern labs through its robust design, intuitive software and hassle free operation.
- Robust and reliable diagnostics solution
- Consistent performance and easy operation
FLEXIBLE
- Programmed to analyse endpoint, fixed time and kinetic assays
- Storage for 200 user programmable test methods and 10000 test results
- Create up to 10 customised test profiles
ECONOMICAL
- Low reagent consumption
- High quality surface coating ensures long Filter life
- Extended lamp life
ROBUST
- Low maintenance
- Consistent and reliable results
- Indian design and manufacturing
CurioLab software is designed to simplify daily laboratory routine. It`s simple and intuitive work flow enhances user eficiency and productivity.
INTUITIVE USER INTERFACE
- Six informative screens control operations
- Easy navigation through submenus
- Requires minimal training
- Mean, SD, % CV and R calculated for each assay
- Levey-Jennings control chart
- 3 levels per assay
- Westgard Rules
- Factor, one-point, two-point and multi-point
- Non linear multi point calibration
- Up to 3 replicates per point
- Up to 10 calibration points
- Early detection and reporting of errors on screen
- Saves time and avoids faulty test runs which saves reagents
PHOTOMETRIC MODULE
- Seven Narrowband Interference Filters
- Filter Wavelengths ( 340 nm to 700 nm )
- a.) 6+2 ( Configurable)
- b.) 7+1 (configurable)
- c.) 12 filters option also available
- IAD process ensures long filter life
- Wavelength Accuracy : ±2nm
- Silicon Photo Diode detector
- Absorbance Range : 0.0 – 3.0 A
- Resolution : 0.0001 Absorbance Units
- Photometric Drift : < 5 mAbs/30min
- CV : < 1%
TEMPERATURE OF FLOW CELL/CUVETTE
- 25°C, 30°C, 37°C
- Temperature Stability : ± 0.2°C
DISPLAY
- 5.7 Inch LCD display screen
- High Contrast Display
KEYBOARD
- Tactile touch QWERTY keypad
- Visual indication on keypad during aspiration
- PRINTER
- Internal 57mm thermal printer with full graphics printing
MEASURING MODULE
- Dual mode ( Flow cell & Cuvette)
- High quality Quartz flow cell for precise measurements
- 30 μl Flowcell volume
- Peltier-controlled reaction temperature
- External cuvettes (10mm path length)
REACTION VOLUME
- Minimum aspiration volume - 300μl
- Maximum aspiration volume - 5ml
DIMENSIONS
- Length : 422mm - Height : 176mm
- Width : 324mm - Weight : 6.5 kg
ANALYSIS METHOD
- Endpoint, Fixed time and Kinetic
- Sample blanking and Reagent Blanking
- Direct Absorbance measurement mode
TEST PROFILES
- User defined 10 Test Profiles
- 10 tests can be added in each profile
UNITS
- 15 pre-defined measurement units
TEST CHANNELS
- 48 dedicated assays
- Direct access keys for dedicated assays
- Open channel capability
- 200 programmable channels
DATA MANAGEMENT
- Storage of up to 10,000 test results
- Stores 30 days QC for each Assay
- Reagent Blank storage
REPORTS
- Search by date, sample ID or Test Name
- Calibration Reports, QC results
QC AND CALIBRATION
- Daily and monthly QC with data archiving.
INTERFACE
- RS 232 Port • USB Port
- PC Connectivity (optional)
POWER
- Input Voltage Range : 88 - 264 VAC
- Frequency Range : 47 - 63 Hz
- Power consumption : 75 W max
