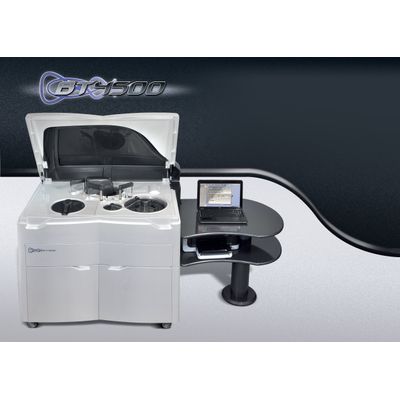

Biotecnica Instruments -Model BT 4500 -Sequential Access Chemistry Analyzer
The BT4500 is a new floor model Clinical Chemistry that includes a built-in four parameter I.S.E. module. The analyzer has a throughput of 450 test/hr. for clinical chemistry and throughput of 240 test/h for I.S.E. testing, providing up to a combined throughput of 690 test/hr.
THROUGHPUT: up to 450 Tests/hr Chemical Chemistry; up to 690 Tests/h with I.S.E.
I.S.E. MODULE: Direct potentiometry Serum and diluted Urine
NUMBER OF REAGENT: 40+40 Total
REFRIGERATED REAGENT BAY: Yes
REACTION VOLUME: from I 80 to 400 µl
SAMPLE VOLUME: from 1,5 to 200 µl
READING CUVETTES: 84 non-disposable optical glass
SAMPLING ARMS: 1 for Serum, 2 for Reagents
SAMPLES TRAY: 4 Sectors of 25 Samples each
STD & CONTROLS TRAY: 26 Calibrator & Controls positions, Refrigerated
TEST MODES: Sequential Access, Batch, STAT
TEST DIRECTORY: Up to 500 + Relation Test
CUVETTE TEMP.: Dry Control OFF/37°C (± 0,2°C)
VACUUM PUMP: On board Vacuum System
PHOTOMETER: Solid State, up to 14 Channel 348-800 nm
ABSORBANCE RANGE: 0 - 3 Abs
PHOTOMETER SENSITIVITY: ± 0.001 Abs
DILUTER: 1 x 220 µl, 2 x 470 µl (Long Life Ceramic)
DILUTER PRECISION: ± 0,1%
DILUTER RESOLUTION: ± 0,1 µl for serum ; ± 1 µl for reagents
BAR CODE: Internal for reagents & sample
CLOT SENSOR: Yes
CRASH SENSOR: Yes
COMPUTER: External PC
PERIPHERALS: Inkjet Printer & UPS
INTERFACE: USB - RS232 Bidirectional + TCP/IP
QC PROGRAM: 3 Known Levels, 3 Unknown Levels
MAINTENANCE: Software Assisted
POWER SUPPLY: Universal input 100/240 Volt, 50-60 Hz, 400 Watt, PFC
U.P.S.: I500 Watt
DIMENSION: I27 cm (W) - 77 (D) - I 19 cm (H)
WEIGHT: I62 Kg
TECHNICAL SPECIFICATIONS EXTERNAL PC
OPERATIVE SYSTEM:
COMPUTER:
PROCESSOR:: Windows® 7/8 Professional
IBM compatible
Intel® Pentium Dual core duo
RAM:: 2 GB
VIDEO:: SVGA or compatible, 32K colors
DISPLAY:: Color resolution: 1366x768
MOUSE:: Serial, PS2, USB
HOST COMMUNICATION:: RS232, TCP/IP
USB:: I, version 2.0
PRINTER:: External Inkjet or Laser
CD ROM:: DVD or CD
