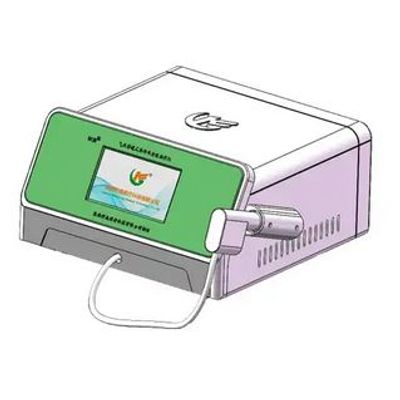

Miaokang - Model MKYLB-95 - Shock Wave Therapy Device

• Place of Origin: Shaanxi,China
• Model Number: MKYLB-95
• Type: Rehabilitative Devices
• Material:ABS Plastic
• Function: Treat various chronic pain
• Dimention:420mm*407mm*224mm
• N.W:15.6kg,
• G.W: 18.6kg
• Package Dimention: 620mm*610mm*320mm
• Certification: ISO9001, ISO13485

1. Non-invasive, safe, effective and noninvasive;
2. No anesthesia is required, the treatment time is short, the medical operation is simple and convenient;
3. Reduces muscle and connective tissue tension, relieves cramps and relieves pain;
4. Reduce nerve excitability, control inflammation, can relieve pain, but also can quickly relieve pain.

Our Barometrie ballistic extracorporeal pressure wave therapy deviceoffers the following key specifications:

• Power Supply: AC 220V 50Hz
• Input Power: 150W
• Working Pressure: 150kPa~400kPa
• Energy Density: 0mJ-0.41mJ/m?
• Penetration Depth: 0mm~26mm
• Operating Frequency: 1Hz~16Hz
• Impact Times: 1000 times~9000 times
• Treatment Cycle: 2-4 days
• Number of Treatments: 2-5 times
• Ambient Temperature: +10°C~+30°C
• Relative Humidity: 30%~75%
• Weight: 15.6kg (excluding trolley)

The pneumatic ballistic-type external pressure wave therapy instrument is a device that compresses air through an air compressor and drives the bullet body in the control handle with the energy generated by the compressed air, which makes the bullet body pulse to imp act the treatment head and produce shock wave.

This ESWT device is effectively used as an adjuvant therapy for a variety of musculoskeletal conditions, including:

• Shoulder Periarthritis
• Tennis Elbow
• Plantar Fasciitis
• Calcific Tendinitis
• Trigger Finger
• Chronic Back Pain
• Muscle Spasms
• Delayed Union Fractures

This device can be used across multiple departments within healthcare facilities, including Orthopedics, Pediatrics, Pain Management, Rehabilitation Medicine, Sports Medicine, Chinese Medicine, Physiotherapy, Urology, and Burn & Plastic Surgery.
