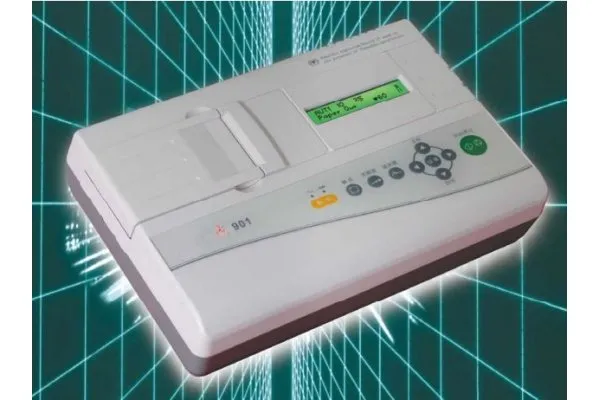

Esse3 -Model ESSE-901 -Single Channel Digital ECG Machine
FromEsse3 s.r.l.
Single channel digital ECG machine with measurement. Design of all digital, digital filtering , auto baseline and adjustment. Simultaneous 12 leads acquisition. Multiple printing mode ( Manual – Auto – Ref-Lead ) , 50mm x 20 mt roll paper. LCD to display operation status and HR , 20x2 characters. High resolution output system, simultaneous ECG wave , lead , paper speed, gain and detailed data. Built-in RS-232 interface, save/copy/communication functions ( optional USB and ECG software ). AC/DC power with built-in rechargeable Li-Ion battery. Design of modularization ( under ECG workstation ) if connected with PC for saving ECG records.
Most popular related searches
- Lead : Standard 12 leads
- Acquisition : Simultaneous 12 leads
- Resolution : 18bit/1000Hz
- Operation mode : Manual mode,3 Auto modes<with measurement report)
- Filter : AC.EMG filter
- Drift filter : Anti-Drift System
- CMMR : >60dB, >100dB(with AC filter)
- Input circuit : Floating, protection circuit against defibrillator effect
- Input circuit current : ^0.1 u A
- Input Impedance : >50MO
- Patient current leakage : <10uA
- Calibrating voltage : 1mV±2%
- Voltage Tolerance : ±500mV
- Time constant : >3.2s
- Frequency response : 0.05- 150Hz
- Noise level : 0 5jiVp-P
- Threshold : <20uV
- Paper speed : 25,50mm/s(±3%)
- Sensitivity : Auto,2.5,5,10,20mm/mV
- Recorder : High resolution thermal printer
- Paper specification : 50mm`20/30m,roll
- LCD display : Displays menu,operation status and heart rate
- Safety level : IEC60601-1classl. typeCF
- Power supply : AC 110V/220V/85-265V,50/60Hz- 1Hz;30VA, DC10. 8V(1500mAH)rechargeable Li-ion battery
- Dimension : 288mm - 204mm - 60mm
