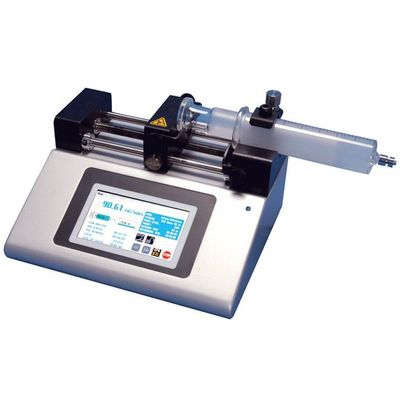

KDS - Model Legato 110 - Single Syringe Infuse/Withdraw Programmable
FromKD Scientific
Single syringe infuse/ withdraw with program option for 2 programs. 50 steps each. Accomodates syringes 0.5ul to 60ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.
Most popular related searches
- Holds one syringe from 0.5ul to 60ml
- High resolution color touch screen
- Unparalled ease of use
- Touch pad "lock" feature
- LED light on front panel
- Full metal chassis
- Built in syringe table
- Up to 30 lbs linear force
- Advanced microstepping techniques
- Built in RS485 interface
- USB port
- I/O & TTL interface
- Continuous mode of operation
- Spill dam
- Programmable
- Accuracy: ± 0.5%
- Reproducibility: ± 0.05%
- Syringes (Min/Max): 0.5 ul to 60ml
- Flow Rate: Minimum (0.5 ul syringe) 1.28 pl/min
- Maximum (10ml syringe) 25.99 ml/min
- Maximum (60ml syringe) 88.28 ml/min
- Display: 4.3 WQVGA TFT Color Display with Touchpad
- Non-Volatile Memory: Stores all Settings
- Connectors: RS485 - IEEE-1394 6 pos
- USB - Type B
- I/O & TTL - 15 pin D-Sub Connector
- Linear Force (Max): 13.6 kg (30 lbs) @ 100% Force Selection
- Drive Motor: 0.9 Stepper Motor
- Motor Drive Control: Microprocessor with 1/16 microstepping
- Number of Microsteps
- per one rev.of Lead Screw: 15,360
- Step Revolution: 0.069 um/step
- Step Rate - Minimum: 27.5 sec/ustep
- Step Rate - Maximum : 26 usec/ustep
- Pusher Travel Rate - Minimum: 0.15 um/min
- Pusher Travel Rate - Maximum : 159 mm/min
- Power : 100-240 VAC 50/60 Hz, 50 W, 0.5 A fuse
- Dimensions : 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
- Weight : 2.66 kg (5.9 lbs)
- Operating Temperature : 4 degree C to 40 degree C (40 degree F to 104 degree F)
- Storage Temperature: -10 degree C to 70 degree C (14 degree F to 158 degree F)
- Humidity: 20% to 80% RH non condensing
- Mode of Operation: Continuous
- Classification: Class 1
- Pollution Degree: 1
- Installation Category: 11
- Regulatory Certification: CE, UL, CSA, CB Scheme, EU RoHS
