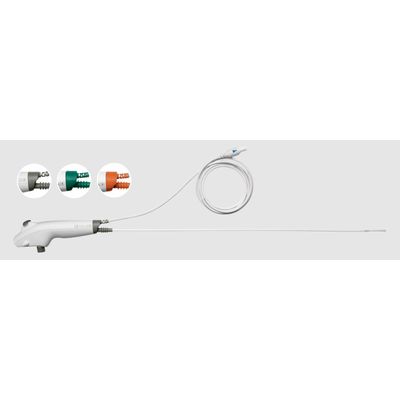

Ambu - Model aScope 4 Broncho - Single-Use Bronchoscopes
Ambu® aScope™ 4 Broncho is a family of single-use sterile bronchoscopes that can be used for a wide range of procedures throughout the hospital. From intubations, airway management, and thoracic anaesthasia in the OR to routine bronchoscopy in the ICU, aScope 4 Broncho provides a sterile, convenient, ready-to-go solution. Sterility offers an extra measure of safety: There is growing concern that even with the most stringent high-level disinfection procedures, patient contamination cannot be eliminated. With the aScope 4 Broncho solution, you get a brand-new, sterile bronchoscope straight from the pack every time. Ready when you are: One of our single-use bronchoscopes is always available, easy to set up, and it requires zero handling or reprocessing after use. The continuous availability reduces the risks and frustrations associated with waiting for an available endoscope.
Hassle-free solution
The ergonomic, lightweight design enhances the user experience while high bending angles and smooth, precise tip motion result in access to all lung segments. Combined with the portable, easy-to-use Ambu® aView™ 2 Advance displaying and processing unit and the unique, award-winning Ambu® aScope™ Broncho Sampler Set, you get a fully integrated, easy-to-set-up, plug-and-play solution.
Bronchoscopy Calculator
To calculate the costs savings on moving from reusable to single-use bronchoscopes, take advantage of our bronchoscopy calculator.
No risk of cross-contamination
Portable, intuitive, lightweight and ergonomic
Fully integrated, easy-to-set-up, with a closed-loop sampling system and three sizes
Closed-loop sampling system protects sample from start to finish
No handling, zero reprocessing, nothing to repair
A brand-new scope for every procedure with clear, crisp images and smooth navigation
With aScope 4 Broncho, you get an integrated solution that helps you deliver the very best in patient care.
- Clearly visualize the bronchial segments
Easily connects to the portable high-quality, full-HD Ambu® aView™ 2 Advance monitor - Use in a wide variety of procedures
Includes three sizes, Slim (3.8/1.2; 180° /180° ), Regular (Regular 5.0/2.2; 180° /180° ) and Large (5.8/2.8; 180° /160°) for multiple procedures - Simplify sampling
Works as a closed-loop system with the aScope 4 Broncho Sampler Set to improve safety and sampling workflow
aScope 4 Broncho family
3 sizes (outer diameter / inner diameter)
Slim (3.8/1.2)
Regular (5.0/2.2)
Large (5.8/2.8)
Bending angles
Slim & Regular: 180° up, 180° down
Large: 180° up, 160° down
Distal end diameter
Slim: 4.2 mm
Regular: 5.4 mm
Large: 6.2 mm
Min. instrument channel width
Slim: 1.2 mm
Regular: 2.0 mm
Large: 2.6 mm
