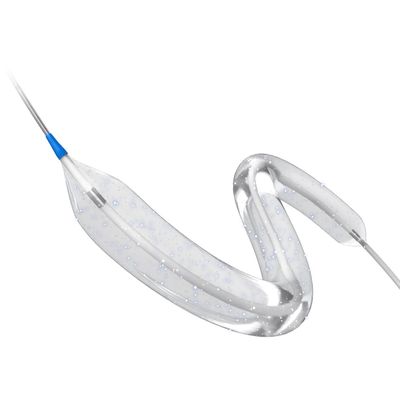

MagicTouch - Model ED - Sirolimus Coated Balloon Catheter
Erectile dysfunction (ED) is de?ned as the recurrent inability to achieve and maintain an erection satisfactory for sexual intercourse.
Assuring Safety by Delivering Sirolimus
TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS
COATING
Unique coating technology leads to 100% balloon surface coating
DRUG
Sirolimus: A drug with proven safety profile
CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus
NANOLUTE TECHNOLOGY is designed to improve the lipophilicity and bioavailability of Sirolimus
- Phospholipid is a drug carrier with two lipophilic tails and one hydrophilic head.
- Sirolimus is encapsulated in phospholipid with proprietary Nanolute technology.
Drug / Excipient
Drug: Sirolimus
Drug Dose: 1.27 µg/mm²
Drug Carrier: Phospholipid
Balloon
Balloon Material: Polyamide
Catheter Design: Rx/Monorail
Delivery System
Shaft Diameter (OD): Proximal : 1.8 F
Shaft Diameter (OD): Distal : 2.5 F
Usable Catheter Length: 140cm
Tip Profile: 0.016’’
Nominal Pressure: 6 Bar
Rated Burst Pressure: 16 Bar
Guiding Catheter Compatibility: 5F
Guidewire Compatibility: 0.014’’ Maximum recommended
Size Available
Balloon Length (mm): 10, 15, 20 , 25, 30, 35, 40
Balloon Diameter (mm): 1.50, 2.00, 2.25, 2.50, 2.75, 3.00
