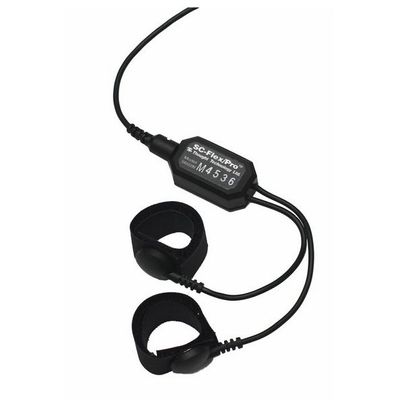

Thought - Model SA9309M - Skin Conductance Sensors
Skin Conductance sensor measures the conductance across the skin, and is normally connected to the fingers or toes. Supplied with two finger bands.
Most popular related searches
- Size (spprox.): 37 mm x 37 mm x 12 mm (1.45” x 1.45” x 0.45”)
- Weight (spprox.): 25g (1.0 oz)
- Input Impedance: 10¹²Ω in parallel with 10pF
- Operating Input Bias: ~ 1.0 to 2.0 V above sensor ground
- Signal Input Range: ± 40 mV
- Channel Bandwidth: 0.05 Hz - 1 kHz
- Signal Output Range: ± 2.0 V (+ 2.8 V if used with Sensor Isolator)
- Input / Output Gain: 50
- Supply Voltage: 7.26 V (±0.05 V)
- Current Consumption: < 1.5 mA
- Accuracy: ± 5%
