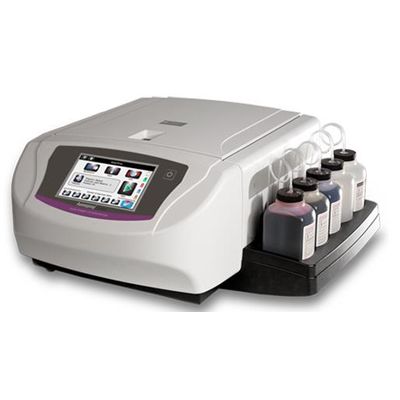

Aerospray - Model Gram Series 2 - Slide Stainer
Automated Gram staining system that provides rapid, standardized results for all types of specimens.
"Delivering textbook quality staining with trouble-free operation"
The new Series 2 stainers fulfills Today’s needs for Laboratories, with an easy and intuitive 21st century interface.
Microscope slides smeared with samples containing microorganisms are stained to differentiate between Gram positive and negative microorganisms.
Only fresh reagents are applied to the slides so there is no chance of slide-to-slide cross-contamination. The reagent consumption is very low and throughput is high using either a 12- or 30- slide carousel. The slides are dry and ready for the microscope in minutes, giving superior results.
And with the addition of the optional Cytopro® Cytocentrifuge Rotor, the Gram is also able to deposit cells onto microscope slides.
See more at AerosprayStaining.com!
1 to 12 or 1 to 30 slides, depending on carousel
Cytocentrifuge Rotor Speed- 100-2000 rpm (±5%), user programmable
- 57cm x 25cm x 54cm (22" x 10" x 21")
- 58cm (23")
- 15.8Kg (34.83 lb)
- 100 to 240 VAC (±10%), @ 50-60 Hz, 200 watts maximum
- Outlet on rear panel
- Lid interlock: Lid must be closed for operation, and is locked down during carousel rotation.
- Level detection on all reagents lines
- Level detection in waste bottle
- Model AC-160
- 8 chambers and slides
- 1.1 kg (2.5 lb)
- 22.6 cm x 6.2 cm (8.9" x 2.4")
