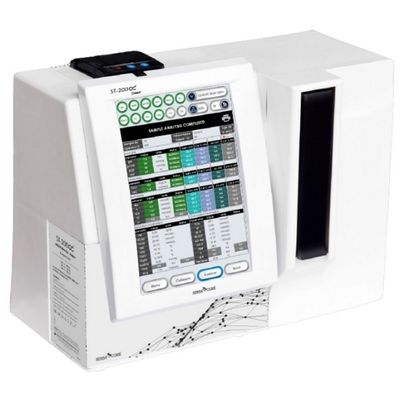

Sensa Core - Model ST 200 CC - Smart Blood Gas Analyzer
Sensacore ST-200 CC Smart ABGEM blood gas analyzer is the new model of sensacore and it is completely automated, microprocessor controlled electrolyte system comes in white color that uses current direct measurement with ION selective electrode (ISE), Impedance (Hct), and Amperometry (pO2) technology to make arterial blood gas analysis and electrolyte measurements.
The ST-200 CC Smart ABGEM blood gas analyzer measures various combinations of Sodium, Potassium, Ionized Calcium, Lithium, pH, Chloride, pCO2, pO2, Hct, and calculated parameters like Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct, SBC, nCa, TCa, pO2%, A, AaDO2 and a/A with one sample of whole blood, serum or plasma our new ultra smart model acquires 27 different results. The special features of the Sensacore ST-200 CC Smart ABGEM blood gas analyzer are External Interfacing such as a barcode scanner, keyboard, and mouse.
It is specifically designed to meet the needs of small to medium-size laboratories diagnostic and medical equipment by Inventing and developing the latest technology, sensacore latest blood gas analyzer improves lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our analyzers.
- Sample Volume: 100 μL (Capillary/Micro mode)
- Results: with 1 Sample 27 different Result
- Sample Type: Whole Blood, Serum, Plasma, CSF & Diluted Urine
- Parameters: Blood Gas: pH, PCO2, pO2, Hct
- Electrolytes: Na, K, Li, Cl, iCa
- Metabolites: LGU, LAC
- Calculated Parameter: Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2 Sat, O2 Ct, SBC, nCa, TCa, pO2%, A, AaDO2, a/A
- External Integration: Barcode Scanner, Mouse, Keypad (Any 2 at a Time) & LIS Integration (Serial Port)
- Internal Bar Code Scanner: Not Available
- Dimensions: 15.2" W x 13.2" H x 8.3" D
- Weight: 5 kg
- Colour: White
- Pump Mechanism: Long-Lasting Comprehensive Lyte
- Sample Storage: 1,00,000
- Language/s: 94+ Languages
- Principle: Direct Measurement with ISE, Impedance (Hct), and Amperometry (pO2, GLU, LAC)
- Parameter Combinations: 16 Combinations
- Touch Screen: Available (Capacitive Touch)
- Operating System: Android
- External Battery: Available (Optional)
- Input Voltage: 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp
- Operating Atmosphere: Temperature: 10 - 30 Degrees C, <85% Moisture
- Print Result: 2 Inch 24 Column Thermal Printer
- Acquirable Results / Hour: 60 Results
- Result Time: 60 sec
- Sample Mechanism: Semi-Auto Sampling
- Display: 10-inch High definition LCD Screen
