B Medical Systems - Model TCW 40 SDD - ...

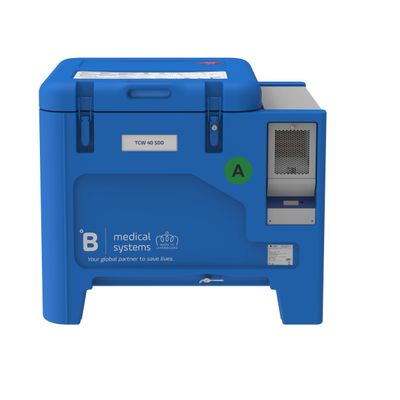

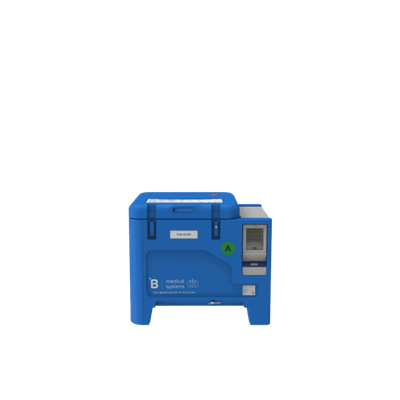

B Medical Systems - Model TCW 40 SDD -Solar Direct Drive Vaccine Refrigerator & Ice-Pack Freezer

FromB Medical Systems

SHARE

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 46.6 L | 1.65 cu ft gross volume.

Most popular related searches

solar vaccine refrigerator

vaccine refrigeration

vaccine refrigerator

vaccine cold chain

vaccine storage

vaccine freezer

solar vaccine freezer

Set temperature: +5°C
Vaccine storage capacity: 36 L
Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
Freeze protection level: Grade A
Climate class (ambient temperature range): Hot zone (+43°C)
Energy source: Solar / DC

Designed to operate in tropical conditions (32°C to 43°C depending on the model)
Rotomoulded body construction: rust free and extremely robust
Humidity control: no condensation issues in the fridge
Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

Door gaskets are easily replaceable and washable
“Plug and play” installation of the solar generators
No battery, no regulator: easy maintenance and no hidden costs
External temperature display and real-time visualization on the web

Strong insulation: extended holdover time in the event of minimal or no sunlight
Silicone gaskets and lockable clasps: tight closing and restricted access
Audio-visual alarm system with remote transmission
Remote temperature monitoring solution, comprising a data logger and a digital platform

Gross: volume: 46.6: L: |: 1.65: cu: ft
Vaccine: storage: capacity: 36: L
Refrigerator: gross: volume: 46.6: L: |: 1.65: cu: ft
Freezer: gross: volume: 4.8: L: |: 0.17: cu: ft
Set: temperature: +5°C
Climate: class: (ambient: temperature: range): Hot: zone: (+43°C)
Certifications: EMC: directive: 2014/30/EU: |: EU: MDD: Class: I: |: Low: voltage: 2014/35/EU
External: dimensions: (HxWxD): 900: x: 1030: x: 780: mm: |: 35.43: x: 40.55: x: 30.71: in
Net: weight: 46.6: kg: |: 102.74: lb
Shipping: weight:: 126: kg
Supply: voltage: 25V: DC
Refrigerant: type:: Natural: R600a
Materials: Polyethylene
Remote: monitoring: RTMD: included
Autonomy: 81h: 54min
Cool: down: 36h
Hold: over: time: 93h24: min: at: +43°C
Energy: consumption: /24h: (stable: running): 0.57kWh/24H: at: 43°C
Energy: source: Solar: /: DC
Freeze: protection: level: Grade: A
Product: type: Solar: Direct: Drive: Vaccine: Refrigerator: &: Ice-pack: Freezer
