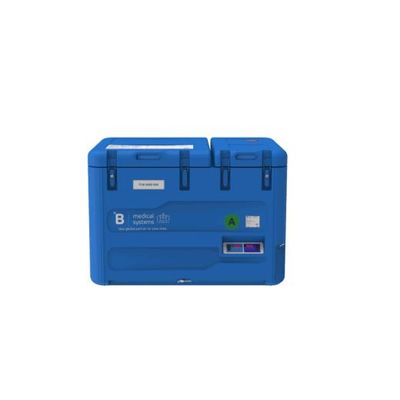

B-Medical Systems -Model TCW2000SDD -Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer
Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with F: 42 L | R: 118 L | F: 1.48 cu ft | R: 4.17 cu ft gross volume.
Most popular related searches
solar vaccine refrigerator
vaccine refrigeration
vaccine refrigerator
vaccine cold chain
vaccination
vaccine storage
vaccine freezer
vaccine cold
solar vaccine freezer
- Set Temperature: +5°C (R) | -25°C (F)
- Vaccine storage capacity: 99 L
- Ice-pack storage (at 0.6 L): 14.4 kg
- Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/035
- Freeze protection: Grade A
- Climate class (ambient temperature range): Temperate zone (+32°C)
- Energy source: Solar; DC
- Designed to operate in tropical conditions (32°C to 43°C depending on the model)
- Rotomoulded body construction: rust free and extremely robust
- Humidity control: no condensation issues in the fridge
- Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion
- Door gaskets are easily replaceable and washable
- “Plug and play” installation of the solar generators
- No battery, no regulator: easy maintenance and no hidden costs
- External temperature display and real-time visualization on the web
- Strong insulation: extended holdover time in the event of minimal or no sunlight
- Silicone gaskets and lockable clasps: tight closing and restricted access
- Audio-visual alarm system with remote transmission
- Remote temperature monitoring solution, comprising a data logger and a digital platform
- Gross volume: F: 42 L | R: 118 L | F: 1.48 cu ft | R: 4.17 cu ft
- Vaccine storage capacity: 99 L
- Ice-pack storage (at 0.6 L): 14.4 kg
- Refrigerator gross volume: 118 L | 4.17 cu ft
- Freezer gross volume: 42 L | 1.48 cu ft
- Set Temperature: +5°C (R) | -25°C (F)
- Climate class (ambient temperature range): Temperate zone (+32°C)
- Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/035
- External dimensions (HxWxD): 910 x 1270 x780 mm | 35.83 x 50.00 x 30.71 in
- Net weight: 108 kg
- Shipping weight: 161 kg
- Supply voltage: 25V DC
- Refrigerant Type: Natural R600a
- Materials: Polyethylene
- Remote monitoring: RTMD included
- Autonomy: 85h 24min
- Cool down: 12h
- Hold over time: 92h at 32°C
- Energy cons. 24h stable: 0.78kWh/24H at 32°C
- Energy source: Solar; DC
- Freeze protection: Grade A
- Product Type: Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer
