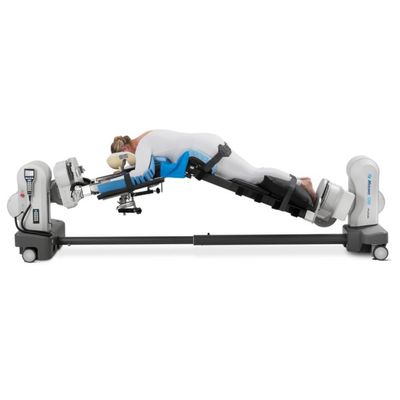

Mizuho ProAxis -Model 6988 -Spinal Surgery Table

Launched in 2013, the ProAxis is our most advanced surgical table for spine surgery, with a unique radiolucent hinge design that supports more precise intraoperative spinal adjustments.

Suitable for simple and complex spine cases, the ProAxis is the only table on the market that allows surgeons to flex and extend the lumbar spine during surgery. Not only does this help enhance visibility and access for the surgeon, it also aids in achieving desired spinal alignment for restoring sagittal balance.

Through its dynamic positioning capabilities, the ProAxis provides for rotation of the patient’s pelvis while accounting for a coordinated translation of the torso when flexing and extending the spine. The table’s ability to maintain the surgical site at a fixed height during hinge articulation further enhances the workflow and provides for consistent visualization. The table’s positioning and operating functions are controlled by an intelligent hand pendant, the IntelliPendant®, which allows the surgical team to monitor and control the table’s exact position and functions.

This dynamic, radiolucent table easily converts from an open frame to a radiolucent imaging top, allowing it to support a variety of spinal surgeries requiring prone, supine, and lateral positioning.

• Radiolucent hinge technology allows for flexion and extension of the lumbar spine with direct visualization of intraoperative changes in spinal alignment
• Total spine access: cervical, thoracic and lumbar
• Torso Trolley® integrates patient movement with hinge movement maintaining neutral upper body position with coordinated patient translation
• Unrestricted O-arm® and C-arm access with open frame or removable two piece supine top setups
• Removable two-piece carbon fiber supine tops with pad and built-in translation slide convert open frame to a platform for supine and lateral positioning
• The IntelliPendant, a software-driven hand pendant controls all table functions with continual user feedback: floor locks, height, lateral roll, Trendelenburg/reverse Trendelenburg and return to level
• Auxiliary panel provides a secondary source for controlling table motion
• Equipped with two memory positions that aid in imaging workflow and improved communication in the OR
• ProneView® Protective Helmet System offers head and eye protection for prone positioning
• Tempur-Pedic® Medical Pad technology incorporated into all patient surfaces
• Cervical management mounting bracket permits cranial stabilization option
• Powered floor locks

• Pedicle subtraction osteotomies (PSO)
• Spinal fusions – lateral, anterior, posterior, transforaminal
• Decompressions
• Laminectomies
• Surgical correction of deformities
• Lumbar total discs
• Kyphoplasties
• Vertebroplasties
• Joint imaging
• Pain management

• Table top width – prone : 19” (48cm)
• Table top width – supine/lateral : 21” (53cm)
• Table top length : 81” (206cm)
• Overall total table length : 122–138” (310–351cm) dependent on where the table is in its range of movements
• Storage length : 80” (204cm)
• Height range : 20–47” (51–119cm)
• Hinge up : 35°
• Hinge down : 20°
• Lateral tilt (left/right) : 15°
• Trendelenburg : 15°
• Reverse Trendelenburg : 20°
• Patient weight capacity : 500lbs (227kg)

• Carbon Fiber, Powered Hinged Frame
• ProAxis® IntelliPendant
• Torso Trolley® – Chest Slide
• 5-way Adjustable Padded Arm Boards
• ProAxis Chest Pad
• ProneView®  Mirror and Protective Helmet System
• ProAxis Tempur-Pedic® Hip/Thigh Pads (1 pair)
• Leg Boards (2)
• Adjustable Leg Sling
• Two-piece Supine Top with 2” (5cm) Tempur-Pedic Pad with Translation Slide
• Cervical Traction Vector Adjustor
• Cervical Chest Tray
• Cervical Management Table Adaptor
• Retractor Adaptor (1) (provides 6” (15cm) of standard side rail)
• 60″ (152 cm) Safety Strap (2)
• Buttocks Strap
• Tempur-Pedic Medical Positioning Pillows, queen (2) and standard (1)
• Supine Top Patient Safety Strap (2)
• Universal Side Rail Adaptor (4) (provides 6” (15cm) of standard side rail)
• ProAxis Accessory Cart with Dust Cover
• ProAxis Table Cover
• Spar Protective Storage Covers (2)
