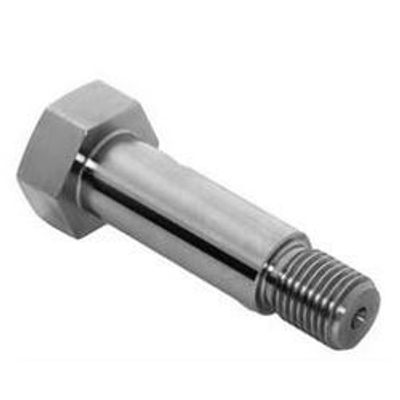

Jignesh - Model SS 304 - Stainless Steel Shoulder Bolt
SS 304 Shouldered Bolt and 316 Stainless Steel Hex Head Shoulder Screw manufacturer in India. Shoulder Bolts are also known as stripper bolts and shoulder screws, it is a machined screw with an integral shoulder or journal between the head and thread. It is used extensively in industries from aerospace to consumer products because of its versatility and unique attributes when installed. The shoulder features of Stainless Steel Shoulder Boltsmay also act like an alignment feature in some applications when they are used.
The cold headed process allows for producing high strength shoulder bolts to be used in these strong applications. Shoulder Screw has three main sections i.e. head, shoulder, and thread. The head has the largest diameter, the shoulder is described by its length and diameter, and the thread has a major diameter which is slightly smaller compared to shoulder diameter. Hex Head Shoulder Bolt is a fastener with a hexagon head shape and an oversized unthreaded shoulder.
The larger shoulder diameter allows for the bolt to resist more shear force than a regular hex head cap screw. Hex Shoulder Bolt is useful in applications where the relative position of the mating work pieces is more critical. Hex Head Shoulder Screw is also known as wheel and axle bolts, it is strong enough to resist pulling and stretching without breaking. It is frequently used with bearings, pulleys, pumps and valves. The hex head tighten the screws with a wrench and keeps it in a place once they are installed. Metric Shoulder Bolts can be often used in a pivot points. This bolt allows the application to move, slide and even twist in some applications. It can also be used as a point where bearing surfaces join other surfaces. It allows different parts of machines, wood, metals and other applications to slide over, rotate, assemble to or they can even be used as a stopping mechanism.
