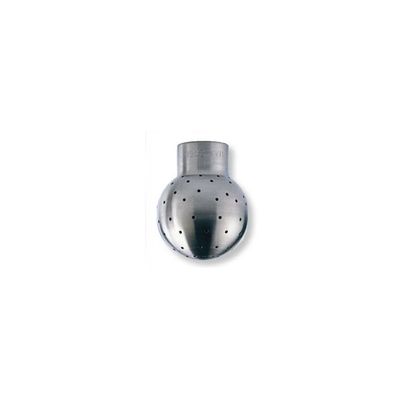

Butterworth - Model Type UAA - Static Spray Balls
Butterworth Static Spray Balls are simple, fast, and efficient devices for rinsing the inside of tanks in a variety of industries. All units are self cleaning and available in a variety of spray patterns and surface finishes.
Most popular related searches
cosmetic chemical
pharmaceutical biotechnology
pharmaceutical chemical
cosmetic pharmaceutical
pharmaceutical beverage
Industries
Static Spray Balls can be used in hygenic and non-hygenic applications.
Typical Industries Served:
- Food
- Brewing
- Dairy
- Pharmaceutical
- Cosmetic
- Biotech
- Chemical
- Beverage
Operational
- Image: UAA-static-spray-ball-operational.jpg
- Alt: Type UAA Static Spray Ball Operation
- Caption: Type UAA Static Spray Ball Operation
Static Spray Balls project a predetermined spray pattern based on the drilling arrangement of the holes within the ball. Typically, rinsing is accomplished by creating the desired coverage and cascading effect required for the relative cleaning task.
Pressure Range:
- 15-30 PSI (1.03 – 2.07 Bar)
Flow Range:
- 10-160 US GPM
Materials of Construction:
- 316 S/S
Maximum Temperature:
- Static: 300°F (149°C)
- Operational: 205°F (96°C)
Surface Finish:
- As Standard: 25-35 Raµ
- Electropolished: ≤ 20 Raµ
- Clip-On, Weld, Threaded, Tri-Clamp
Minimum opening:
- 1.77″ (45 mm)
Connections:
- Installation Assemblies
Lubrication:
- Flow-Through / Media Lubricated
Weight:
- 0.65 – 0.68 lbs (0.295-0.309 kg)
