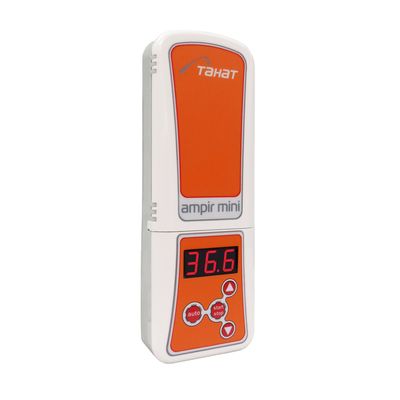

Tahat - Model AMPIRmini - Stationary IV Fluid and Blood Warmer

SHARE

AMPIRmini IV fluid warmer is used for the prevention and treatment of hypothermia in pre-, intra- and postoperative periods and its negative aftereffects. The IV fluid warmer can be utilized during transfusion and infusion of blood, fluid therapy for children and adults, warming of nutrient solutions through nasal or enteral probes. AMPIRmini IV fluid warmer is a warming device which consists of a control unit, an integrated heat exchanger, and a mounting belt. It offers manual and auto modes, allowing precise temperature setting. The device also incorporates audible and visual alarms, along with self-diagnostics for advanced safety.

Most popular related searches
iv fluid
fluid warmer
blood warmer
iv line
postoperative period
iv stand
iv standard
infusion blood
infusion device
patient flow
  • Compact infusion warming device
  • Open system. Any standard IV lines can be used
  • 24h set temperature maintenance
  • Fast and easy set-up and mounting

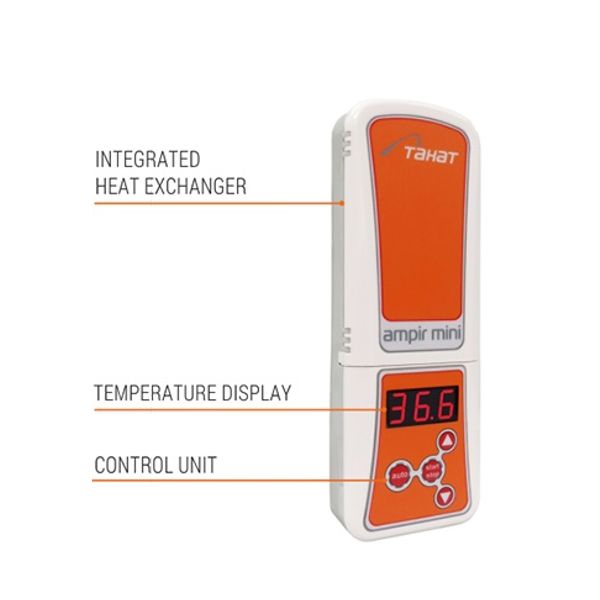

1. Control unit

  • LED display indicates current and set temperatures
  • Separate control buttons
  • 2 operating modes:
    • Manual mode: the temperature can be set between 34°? and 42°? with 0.1°? increments;
    • Auto mode: temperature is maintained at 36.6°?
  • Audible and visual alarms, self-diagnostics at the power-up and during operation

2. Integrated heat exchanger

  • Open System. Any standard IV lines can be used, incl. pediatric (optional)
  • The heat exchanger can be placed very close to the injection site, providing minimum distance from the heat exchanger to the patient.
  • Max. flow rate - 2 000 ml/h
  • Duralumin heating plate: high thermal conductivity, durability and resistance to mechanical stress

3. Mounting Belt

  • The device can be placed very close to the patient: on an IV stand, near the injection site, on top of a bed or stretcher.

External power supply: 110-230 VAC, 50/60 Hz
Average power consumption: 30 W/h
Temperature setting: 34°? to 42°?
Temperature increment: 0.1°?
Warming-up to 37 ºC: 2 min
Continuous operation: 24 h
Electric shock protection class: ?F/I
Protection rating: IP 23
Weight (warmer only): approx. 0.3 kg
CE mark: +
