SupraCross -Model Transhepatic -Steerable Sheath and RF Wire

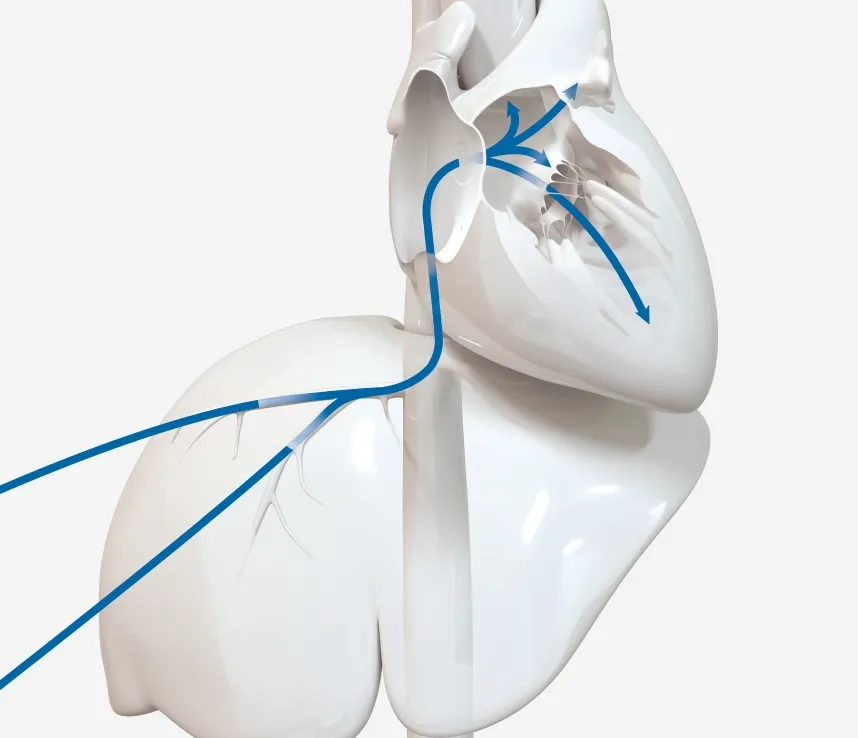

Perform transseptal access using an alternate approach with the SupraCross® Steerable Sheath and SupraCross® RF Wire. When the conventional solution may not be optimal, use SupraCross® RF Solution to gain alternate access into the left atrium via hepatic venous approach.
Transhepatic Solution includes: RF Wire and Steerable Sheath
3-in-1 SupraCross® RF Wire
1. Puncture
Cross normal, fibrotic, and aneurysmal septa1,2,3,4 with a short, focused RF energy pulse.‡
2. Anchor
Instantly secure and maintain left atrial access with a flexible spiral tip1.
3. Exchange
Support sheath exchange with a sturdy 0.035" stainless steel rail2.
Precision Steerable Sheath
TruGlide™ Handling
Responsive, smooth, high-precision steering to confidently position your curve.
Flexible Dilator
A fully steerable sheath with flexible dilator to facilitate navigating complex anatomy and precise positioning on the fossa2.
SupraCross® RF Wire
Feature: Specifications
- Wire length: 180 cm
- Outer diameter: 0.035’’
- Radiopaque marker: Platinum tungsten coil; 3 cm
- Distal coil diameter: 2.4 cm
SupraCross® Steerable Sheath
Feature: Specifications
- French size: 8.5F
- Sheath usable length: 45 cm
- Sheath overall length: 65 cm
- Dilator usable length: 67 cm
- Compatible guidewire: 0.035”
- Distal curve: Bidirectional (90° CCW, 180° CW)
- Distal curve diameter: Small (17 mm), Medium (22 mm), Large (50 mm)
