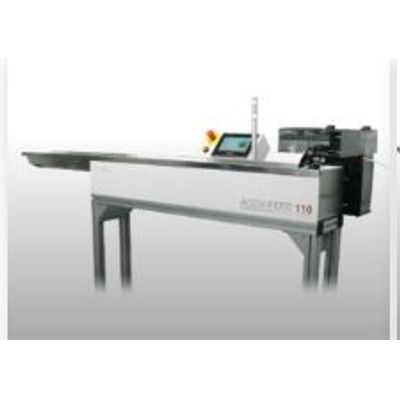

MMT -Model Accu-Feed 110 -Stick Tubing and Wire Feeder for Medical Applications
The Accu-Feed 110 is a high-precision stick feeder designed for handling wires, metal, and plastic tubing, as well as metal rods, primarily for medical purposes. It ensures precise positioning or continuous feed with its advanced control mechanisms. The system can integrate seamlessly with Syneo machines, offering capabilities such as part rotation and multi-process control, including grinding, cutting, trimming, marking, and assembly procedures. It also acts as an interface for program downloads to other equipment, enhancing compatibility and workflow efficiency. Designed for the demanding precision that medical applications require, the Accu-Feed 110 plays a pivotal role in processes like centerless grinding, tip forming, and insulation removal, ensuring optimal performance and adaptability in various manufacturing environments. Its dynamic operation enhances the automation and precision critical to modern medical manufacturing.
The dynamic Accu-Feed 110 Stick Tubing and Wire Feeder provides high speed, precise stick feeding of wire, metal and plastic tubing and metal rods for medical applications. This machine can feed and hold at an accurate position, or can feed until a handoff signal is received. The 110 can be paired with Syneo machines to rotate and process parts. It can communicate with and control many processes including centerless grinding, cutting and trimming, marking, tip forming, testing, measurement and inspection, insulation removal and ablation and assembly. The 110 can also act as an interface, such as to download control programs to other equipment.
- Fast, accurate part feeding
- Easily integrates with a wide range of processes through its digital handshake interface
- Can process a range of material types, lengths and widths
- Optional process control and data download
- One operator can run more than five machines
- Speed: 25 in/second (63cm/second)
- Load/Unload time: 1 part/2 seconds
- Minimum length: 8” (20cm)
- Maximum length: 48” standard; 96” optional (1m standard; 2m optional)
- Minimum OD: .008” wire; 0.030” tube (.20mm wire; .76mm tube) Maximum OD: .040” wire; .350” tubing (1.01mm wire; 8.89mm tube)
- Power: 100-240 VAC, 50/60 Hz
- Air requirements: 90 PSI, 0.1-5 CFM
- Dimensions (W x D x H): 20” x 118” x 59” (0.5m x 3m x 1.5m)
- Weight (standard machine): 165 lbs.
- HMI: 7” full color touchscreen
- Metal braid reinforced composite materials
- Polyimide
- Pebax®
- PTFE core coextrusions
