Heyco - Model ST Lockit - Strain Relief Bushings
FromHeyco

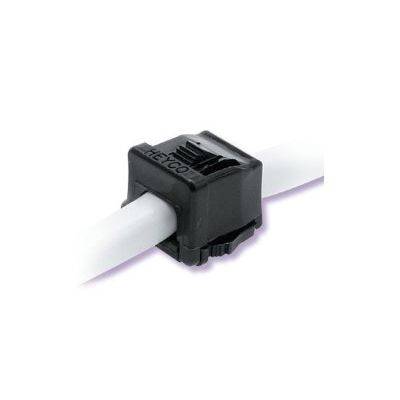

Assembly friendly! Independent of insertion into the panel, Lockit™ Strain Reliefs self-lock onto the cable. Preassemble off line for final assembly at a later time or remote location, for lower installed cost! Lockit Strain Reliefs hold so well they pass the UL pull-out test requirements with or without panel support.
Most popular related searches
- Protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord. Rectangular design eliminates the possibility of part rotation under forces of twist.
- Lockit`s three finger design securely anchors into panels as thin as .032" (0,8 mm) and as thick as .157" (4,0 mm) for a neat, clean appearance. Five locking steps accommodate a wide range of panel thickness. Low profile head satisfies design aesthetics!
- Heyco`s automated Pre-Assembly Equipment speeds assembly of the Lockit™ onto the cable and thus lowers costs while greatly reducing risk of carpal tunnel syndrome.
- Consult Heyco for other wire types and sizes.
- Corresponding Mounting Hole Plugs can be used to fill blank/unused Mounting Holes and thus allow for a single panel design for multiple applications.
- Material : Nylon 6/6
- Certifications :
- Recognized under the Component Program of Underwriters` Laboratories File E15331
- Certified by the Canadian Standards Association File 8919
- Flammability Rating : 94V-2
- Temperature Range : -.04°F (-18°C) to 221°F (105°C).
