Lumedica - Model OQ - StrataScope

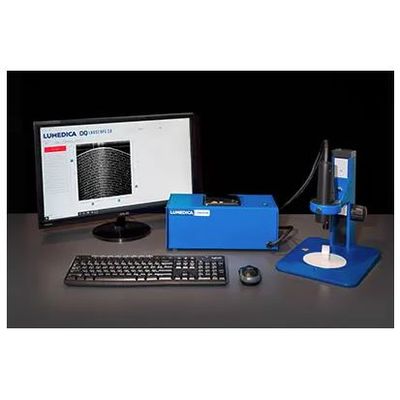

Examine, monitor, and measure more with the new Lumedica OQ StrataScope. The OQ StrataScope images up to 4 mm below the surface. This OCT imaging system is ideal for tissue and industrial samples, including skin, bone, teeth, and silicon. It’s easy to use and quick to set up. At the size of a shoebox, it is portable and won’t crowd your bench or require a cart.
Accurate
Precisely examine, monitor, and measure tissue structures. Non-destructively gauge product integrity.
Portable
At about the size of a shoe box, it is portable and won’t crowd your bench or require a cart.
Easy to use
The software is simple to operate and quick to set up. Easily connect to your network via built-in wifi.
Depth Resolution: 14μm in air; 10μm in tissue
Imaging Depth: 4.5 mm in tissue (maximum theoretical)
Transverse Resolution: 20μm
Scan Range: 7 mm linear; 7x5x5 mm 3
A-Scan Rate: 18,000/sec
B-Scan Rate: 30/sec
