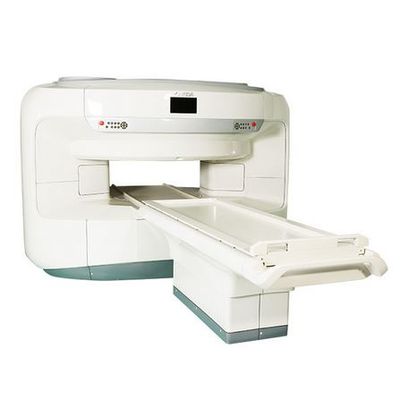

Basda -Model BSTAR-070 -Strong Gradient Superconducting 120 Liter 0.7T Open MRI Machine
- Type Of Magnet:Superconducting
- Maximum Liquid Helium:120 Liter
- Magnet:0.7T Open
- Technology:Self Shielding
- Megnet Vertical Gap:46 Cm
- Maximum Patient Weight:200 Kg
Product Details:
- Place of Origin:Guangdong, P.R.C.
- Brand Name:Basda Medical
- Certification:CE, ISO13485
- Model Number:Bstar-070
Payment & Shipping Terms:
- Minimum Order Quantity:1 Set
- Price:USD 600,000
- Packaging Details:1 unit/wooden box
- Delivery Time:30-45 Days
- Payment Terms:Credit card, Paypal, T/T, Western Union, MoneyGram
- Supply Ability:200 Machines per Year
Evolution Compared To Conventional Permanent Magnet MRI:
In the magnet structure, Bstar-070 uses liquid helium get the superconductive environment, and equipped by multiple Helmholtz superconducting coil charging with current to generate the magnetic field, the magnetic field strength is 0.7T.
The Helmholtz coil is made of a number of same radius coil, the coils are coaxial concatenated placed. The coil array can generate up to dozens tesla`s magnetic field.
Rich coil configuration
The Receiver coil, together with parallel acquisition technology, improve the signal-to-noise ratio and image quality. The customer can choose according to the clinical needs (specific configuration of the coil number and types will be subject to final contract).
- head coil
- neck coil
- body coil(s)
- body coil(soft)
- knee coil
- breast coil
- body coil(L)
- shoulder coil
- ankle coil
- wrist coil
E-alarm technology
At the same time, in Bstar-070 configuration there is a special monitoring system, it is simple and easy to operate, it can real-time monitoring the magnet internal pressure, temperature and liquid helium level, if the magnet condition is abnormal, the monitoring system can automatically send alarm information to the user`s phone, it can greatly reduce the risk of magnet quenches.
Interactive systems
Bstar-070 provide comprehensive scan kit and scanning sequence, with rich clinical application of the full body, with a full range of scan plan, assist the customer’s clinical diagnosis. Advanced scanning sequence are provided as well as all routine scan, the system also can take vascular imaging, MRU/MRCP/MRM imaging, DWI imaging and other advanced imaging sequences. Rich post-processing software can optimize images in case necessary to help in complex diseases diagnosis.
- very large open space;
- very good magnet stability without the interference of magnet temperature.
- very good magnet field homogeneity.
- Liquid helium only 120L, much better than any 1.5T MRI system.
- 46cm magnet gap, even better than permanent MRI system.
- perfectly support the MRI intervention operations.
