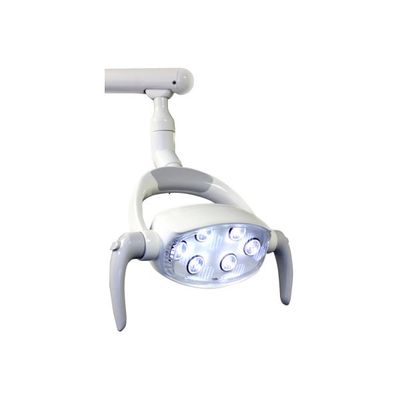

DARAY - Model Excel Series - Superb Quality LED Dental Light

Utilising the latest in LED technology our new product range has been developed to perform to the highest standards expected within modern dentistry. With rectangular light field diameter, and a large range of movement; our new dental range also incorporates touch-free controls as standard along with triple-axis rotation to get the right light in the right location.

Designed with a high colour temperature and high CRI (Colour Rendering Index); our lights provide the white light you need to properly match shades, identify details and assess any surrounding tissue. Our touch-free, dual control system allows you to power the light on or off and adjust the intensity without having to touch the light-head, further helping to assist with infection control.

Touch-free control; variable intensity

Designed and developed from our BiLite and QiLite family. The Excel feature multiple, direct LED modules. This light also feature a removable fascia for easy cleaning if required. Like the ULTRA, this light also has adjustable, removable handles.

Factory calibrated at 700mm from the work surface, the Excel has a crisp, rectangular light field diameter - reducing uncomfortable glare for your patients whilst retaining a sizeable field with consistent and uniform illumination throughout. Utilising shadow-reduction technology, DARAY`s dental lighting keeps you focused on your patients, not your equipment.

• Touch-free control
• Variable intensity
• LED light source provides excellent efficiency
• Crisp, rectangular light field diameter
• Aesthetic styling
• Exceptional range of movement
• Easy to clean and maintain
• Low total cost of ownership.
• Ceiling, wall and mobile mount options available
• Bespoke short-reach arm versions
• Available as an Upgrade Kit for conversion of existing lights
• 3-position removable handles
• Excellent colour rendering for totally natural skin tones
• BioProtect anti-microbial coating to assist in infection control

• Light :
• Light source : LED
• Light intensity (lux) @ 0.7m : 35,000 lux ±5%
• Light intensity adjustment range : 5% - 100%
• Colour temperature (Kelvin) : 6,950K ±500 Excel Series
• Colour rendering index (CRI) : 95
• Colour rendering (R9) : 88
• Light field diameter (D50) : @ 0.7m: 150mm x 70mm ±20mm
• Number of LED`s : 6
• Power :
• Power consumption : 8-12W ±2%
• Average working life : >50,000 hours
• Input voltage : 100 - 240V AC 50/60 Hz
• Output voltage : 12V AC ±2%
• Temperature rise on patient : ≤2°C
• Other :
• Warranty period : 3 Years
• NHS e-class code : FBU, FKR
• Commodity code : 9018 908400
• GDMN code : 12276
