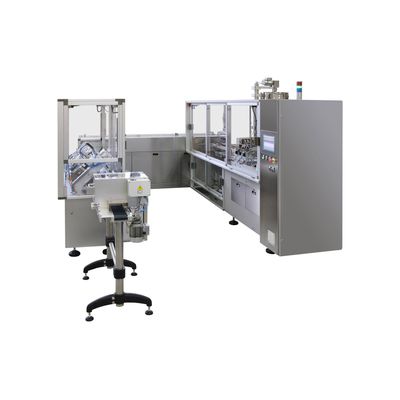

FARMO DUE -Model FD11 -Suppository Thermoforming Machine
The FARMO DUE FD11 is a highly flexible thermoforming machine designed for the production of 11,000 suppositories per hour. It caters to both small and large production batches, enhancing operational adaptability. This machine features a dual-reel forming capability to ensure precise cavity alignment, along with strip cutting for easier inspection and cooling tunnel management. Its 'balcony' dosing area offers complete process visibility and simplifies cleaning tasks. The dosing volume is operator-controlled via a user-friendly panel for precision and quick format changes. The modular design includes three main components: cavity forming and product dosing; a cooling tunnel for product solidification; and top sealing with blister cutting. It supports high-temperature and light-sensitive products with universal forming systems and employs a volumetric pump made from 316L stainless steel allowing dosing up to 120°C. The FD11 also integrates advanced printing and data checking systems, and connects with diverse cartoning machines to optimize the entire packaging line's automation.
Our intermediate model has a significant production capacity of 11,000 suppositories per hour. It also offers the highest flexibility, making it possible to manage both small and large production batches with ease.
FARMO DUE guarantees simultaneous forming of two reels to assure the perfect alignment of each cavity.
Cutting in strips comes immediately after dosing, making inspection easier and facilitating the management and efficiency of the cooling tunnel.
The “balcony” dosing area permits a full inspection of the process and facilitates cleaning procedures.
The dosing volume is automatically set by the operator panel, guaranteeing precision, maximum simplicity and quick format changeover.
The Farmo Due machines are both modular:
Module 1 - Cavity forming and product dosing.
Module 2 - Cooling tunnel for product solidification.
Module 3 - Top sealing and blister cutting
- Universal forming system to form cavities in plastic or aluminium, for high-temperature or light-sensitive products.
- System for centring the print on the cavity for pre-printed films.
- Dosing system with volumetric pump in 316L stainless steel that can dose products with a temperature up to 120°C.
- Modular cooling tunnel with adjustable temperatures in several stages in order to prolong the time the product remains and ensure slow and uniform cooling.
- System of coding variable data by using punches or inkjet printing + check of printed data with integrated “FARMO VISION” OCV/OCR vision system.
- Connection downstream with every type of automatic cartoning machine via traditional linkage or robotic systems to achieve the highest level of automation and efficiency of the packaging line.
- Fast and easy format changeover.
