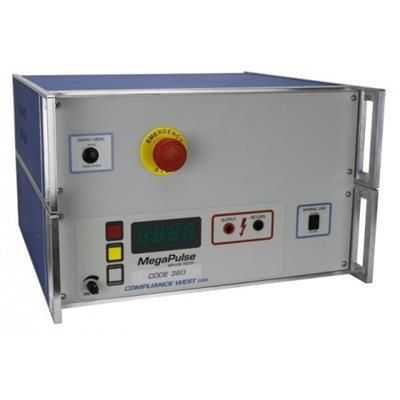

MegaPulse -Model 360J -Surge/Impulse Testers
A Compliance West surge tester that delivers 360J of energy in a damped sinusoidal (Lown) waveform with a load of 50Ω connected to the output. Mimics the output of a well-known defibrillator tester that is the de facto standard used for the medical industry to describe a full defibrillator pulse.
Most popular related searches
defibrillator pulse
defibrillator testing
AED defibrillator
defibrillation
defibrillator
defibrillator aed
- Output Energy Delivered: 360J ±10%
- Main Capacitance:32 uF ±5%
- Voltage Control: Manually, by turning a knob in the front panel
- Polarity control: Positive and Negative. by front panel push button, alternating control available with optional computer control
- Duty Cycle: 20 Seconds between pulses
- Voltage Display: 4 Digits LED Display
- Line Voltage: 120 VAC AC, 50/60 Hz *optional different line voltages available (100V, 110V, 220V, 230V, 240V)
- Operating Temperature: 15-28 ºC
- Relative Humidity Range: 0-90% non-condensing
- Dimensions: 17" wide x 18" high x 17" in deep
- Damped Sinusoidal when 50 ohm is connected.
- Direct Joules readout on front panel.
- 20 second period between pulse delivery,
- Emergency Stop Button Included, when activated disables buttons and discharges main capacitor.
- External interlock, disables HV output and defeats test when circuit is open.
- Optional USB Testminder, Computer Control.
- Ergonomically designed for safety, speed and efficiency.
- Front panel indicates polarity
- Output voltage and polarity are controlled manually on front panel or via TestLink.
- Cables, manual and calibration certificate included.
- One year calibration cycle.
- One year warranty.
