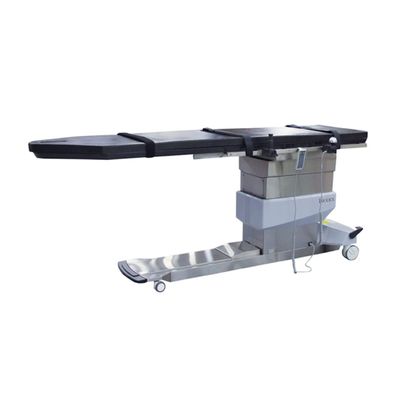

Capintec - Model 846 - Surgical C-Arm Table
An ideal choice for private practices, the Surgical C-Arm Table 846 provides a cost-effective option where stable, precise, quiet and vibration-free positioning is needed. A cantilevered low attenuation carbon-fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. Its large radiolucent area, motorized actuation of height, and free-float tabletop make it ideal for pain care, cardiovascular and interventional radiology applications. The 24"-wide by 75"-long radiolucent area allows for full fluoroscopic visualization in either patient direction over its 97"-long top. The standard contoured top provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to promote superior image quality for long-leg runoff studies.
- Free-Float Tabletop – With specially-designed SmoothGlide™ movement
- Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad)
- Precision Electric Motor Actuators – No oil or hydraulics
- Choice of contoured or rectangular design. Contoured tabletop features a face cutout for comfortable prone positioning
- Tabletop Motion – Expansive head-to-toe, 35"
- Radiolucent Area – Extra-large, 75"
- High-Speed Actuator – For quick vertical movement
- Mushroom-Shaped Control – Ergonomic, for free-float motion
- Table Base – Encased in stainless steel, easy to clean
- Handheld Controller – For vertical movement
- Patient Capacity – 500 lb
- Low Profile Base – For unrestricted C-Arm movement
- Two-inch thick table padding ensures patient comfort and stability
- Accessory Rails
The floating tabletop is easily controlled with our ergonomic, mushroom-shaped control to float the tabletop 35" head-to-toe and 10" side-to-side. Using pneumatic air controls, our SmoothGlide technology provides a quiet, vibration-free float with a lock-out feature to prevent accidental activations. The additional handheld controller offers the freedom to adjust height from any point around the table.
