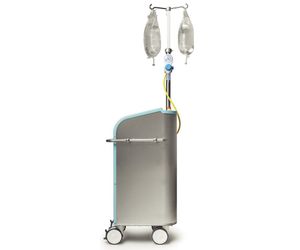

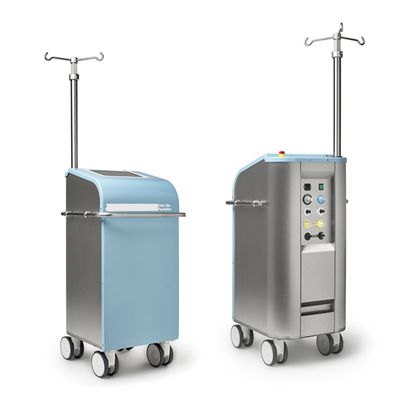

Drain Star - Surgical Fluid Collection and Disposal System

Drain Star Revolution, the next generation in surgical fluid collection and disposal systems, is the result of over 15 years experience. The high volume capacity allows uninterrupted performance for OT staff, managing fluid and smoke waste by a portable unit totally closed.

Most popular related searches

Eliminate canister replacement & disposal
Reduce solid waste disposal costs
Operate with safe, continuous suction for any surgeries
Environmentally friendly solution to bioburden removal during surgery
Battery powered for use in ward as I.C.U. (CVVH), dialysis or catheterized patients

I.V. Pole

Lifter with electrical height adjustment

Suction

Two independent suction lines low vacuum

Vacuum suction

High vacuum suction channel

Laparoscopic smoke evacuator

ULPA Smoke filtration kit for Laparoscopy

Plus:

Bacterial neutralization of the collected fluids
Automatic system decontamination cycle
High accuracy volume measurement

Dimensions: cm 55 x 55 x 160 h
Weight: 72 kg
Structure: Stainless steel
Wheels: 125 mm diameter, two with brake
Supply: Voltage 110V – 230VAC 50/60 Hz, Cyclical battery 12V 14Ah AGM
Capacity: 62 litres
I.V. Pole: Maximum load capacity 30 Kg, regulating range 1.500 – 2.650 mm
Low vacuum suction: Two independent suction line
High vacuum suction: Adjustable channel up to 700mm/Hg

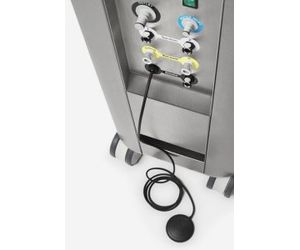

Smoke evacuation: Activated by footswitch with ULPA filter
Evacuation: 8 lt/min
User interface: 10.1” Display Touchscreen
Mode of operation: Continuous/Intermittent by mains supply or battery
Data memory: Up to 42 patients
Temperature: By display with configurable alarm
High level disinfectant reservoir: 1,5 lt internal container
Decontamination cycle: Totally automatic
