Model FMX -Surgical Instruments Power Generator

SHARE

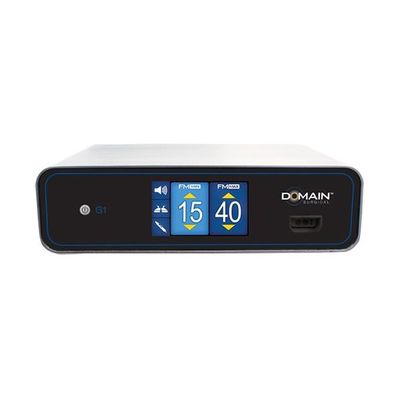

The FMX Generator intelligently delivers electrical energy to the surgical instruments. The advanced generator features a patented software control algorithm that continuously monitors and adjusts the delivery of energy, ensuring that the optimal amount of heat is delivered to the tissue at all times. The large touchscreen display provides the entire surgical team immediate feedback on power setting levels and changing settings is as easy as touching the display. The FMX Generator has earned the Type CF (“Cardiac Floating”) rating.

Most popular related searches
  • Operating Environment Conditions: Temp: 10° to 30° C (50° to 86° F)
  • Humidity: 15% to 85% Non-condensing
  • Storage Conditions: Temp: -20° to 65° C (-4° to 149° F)
  • Humidity: 15% to 85% Non-condensing
  • Shipping Conditions: Temp: -20° to 65° C (-4° to 149° F)
  • Humidity: 15% to 85% Non-condensing
  • Moisture Protection: Generator: IPX1
  • Foot Pedal: IPX7 minimum
  • Generator Dimensions:
    • 14″ x 4″ x 12″
    • 35.6 cm x 10.2 cm x 30.5 cm
  • Generator Weight:  Approximately 20 lbs. (9 kg)
  • Power Requirements: Voltage: 110/220/230 Vac
  • Current: 4/2A rms max
  • Frequency: 50/60 Hz
  • Power Output: 60W Max
  • Fuses: For 110V: T 5A L 250V
  • For 220V/230V: T 2.5A L 250V
  • Operating Frequency: 40.68 MHz
  • Mode of Operation: Intermittent Operation 10 sec. ON, 30 sec. OFF
  • Protection Class: Class I
  • Output Type: Type CF
