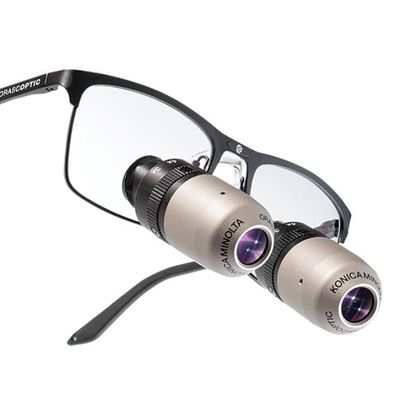

OrascopticModel EyeZoom - Surgical Loupes

SHARE
The first and only 3-in-1 variable magnification loupe. Switch seamlessly between magnification levels 3x, 4x and 5x. Fixed magnification is a thing of the past. Whether your afternoon consists of implants and crowns or microsurgery and suturing, your success demands outstanding vision. Now your loupes can be as agile as you are. This patent-pending technology provides edge-to-edge clarity and high-definition resolution.
Most popular related searches

All optical systems are made with Grade A fine annealed glass lenses fused with anti-scratch and anti-reflective coatings.

All carrier lenses are made with High Index polycarbonate material.

Mounting Options
  • Through-the-Lens
Magnification Power
  • 3x, 4x and 5x
Field Width
  • 4" (10.20 cm) at 3x
  • 3.25" (8.30 cm) at 4x
  • 2.5" (6.35 cm) at 5x
  • Measured at 17.2” to 17.9” working distance without eye prescription
Field Depth
  • 4" (10.20 cm) at 3x
  • 3.25" (8.30 cm) at 4x
  • 2.5" (6.35 cm) at 5x
  • Measured at 17.2” to 17.9” working distance without eye prescription
Weight*
  • 3.0 oz (86.2 g)
  • * Measured on Orascoptic Victory frame
Working Distance
  • Customized to each user
Declination Angle
  • Customized to each user
